How to Test a Temperature Sensor: A Comprehensive Guide for Accuracy and Reliability

How to Test a Temperature Sensor for Accurate and Reliable Performance

How to test a temperature sensor is essential for ensuring every temperature sensor delivers accurate data. Faulty readings can cause system failure, safety risks, and costly downtime.

Start with a visual inspection. Check wiring, corrosion, and loose connections. Damage often affects accuracy.

Use a multimeter for basic checks. Measure resistance or voltage output. Compare results with manufacturer specifications.

For thermistors, verify resistance at known temperatures. Use ice water and boiling water tests. Confirm readings match datasheet curves.

For RTDs, measure resistance stability. Ensure values align with standard tables.

For thermocouples, test voltage output under controlled heat. Confirm response consistency.

At DXM, we apply 29 years of engineering expertise and ISO 9001:2008 standards to ensure every temperature sensor meets strict accuracy and reliability requirements.

Why How to Test a Temperature Sensor Matters for System Safety and Performance

How to test a temperature sensor is critical for every temperature sensor used in control systems. Regular checks protect accuracy, safety, and efficiency.

Accurate data ensures stable operation. A drifting temperature sensor can cause product defects or spoilage. Testing verifies real performance against specifications.

Control systems depend on reliable input. A faulty temperature sensor may trigger shutdowns or unstable output. Early testing prevents major failures.

Safety relies on precise monitoring. In heating or chemical systems, sensor errors increase risk. Routine validation reduces fire and overheating hazards.

Efficiency also depends on accuracy. An untested temperature sensor may waste energy or materials. Proper verification lowers operating costs and improves system reliability.

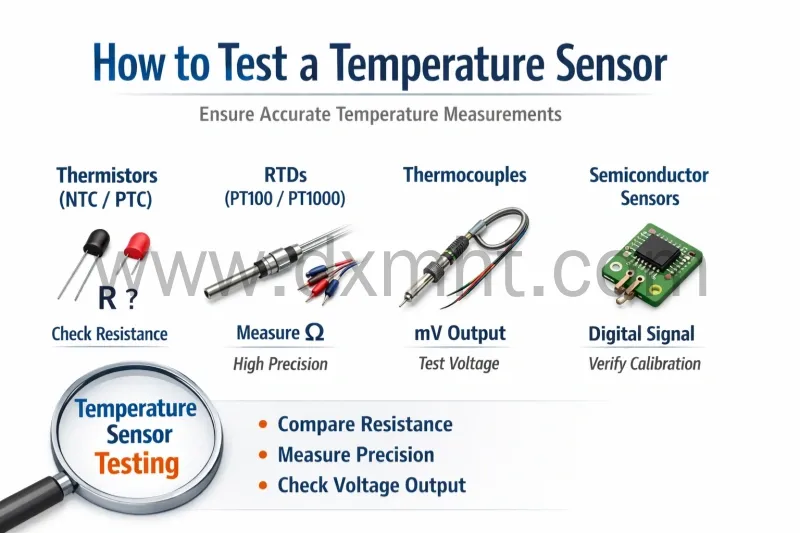

Common Types of Temperature Sensors and Testing Principles

Understanding how to test a temperature sensor starts with knowing its type. Proper methods depend on design and material. DXM engineers high-precision solutions with strict quality control.

Thermistors (NTC & PTC)

Thermistors change resistance with temperature. NTC resistance decreases as heat rises. PTC resistance increases with heat. PTC devices suit protection circuits. They offer fast response and high sensitivity. When learning how to test a temperature sensor, always compare resistance to datasheet curves.

RTDs (PT100, PT1000)

RTDs use platinum elements. Resistance rises predictably with temperature. PT100 measures 100Ω at 0°C. PT1000 measures 1000Ω at 0°C. They deliver high accuracy and stability. Testing requires precise resistance measurement.

Thermocouples

Thermocouples use two dissimilar metals. Temperature difference creates voltage output. They handle extreme environments. Verify millivolt output under controlled heat.

Semiconductor Sensors

These sensors use diode voltage changes. Output is linear and digital-friendly. Calibration confirms accuracy and consistency.

General Preparations Before Testing a Temperature Sensor

Understanding how to test a temperature sensor begins with proper preparation. Correct setup ensures reliable results and protects equipment, including NTC and PTC devices.

Safety First

Power off the system completely.
Confirm zero voltage before handling.
Wear proper PPE at all times.
Use caution with hot baths or circuits.

Gather Essential Tools

Use a digital multimeter or ohmmeter.
Prepare a calibrated reference thermometer.
Use a stable power supply if required.
Prepare an ice bath at 0°C.
Use a controlled hot water source.
A data logger improves traceability.
Keep the manufacturer datasheet ready.

Consult the Datasheet

Datasheets define nominal resistance values.
They list tolerance and temperature curves.
Follow specifications for NTC and PTC sensors.
Accurate comparison is key in how to test a temperature sensor.

Perform Visual Inspection

Check wires and insulation.
Inspect terminals for corrosion.
Look for cracks or loose contacts.
Physical damage affects measurement accuracy.

How to Test a Thermistor Temperature Sensor Accurately

Understanding how to test a temperature sensor is critical when verifying NTC and PTC thermistors. Correct testing ensures stable performance and long service life.

Method 1: Room Temperature Resistance Test

Disconnect the thermistor from the circuit.
Set the DMM to resistance mode.
Measure across both terminals.
Record ambient temperature precisely.
Compare readings with the datasheet.
Check tolerance limits carefully.
PTC resistance rises with heat.
NTC resistance falls with heat.

Method 2: Ice Bath Test (NTC)

Prepare a stable 0°C ice bath.
Confirm temperature with a reference thermometer.
Immerse only the sensing tip.
Stabilize for several minutes.
Measure resistance accurately.
Compare with 0°C datasheet value.
This validates how to test a temperature sensor at a fixed point.

Method 3: Hot Water Test (NTC)

Heat distilled water gradually.
Record values at stable intervals.
Measure resistance at each point.
Plot temperature versus resistance.
Confirm curve consistency with specifications.

Troubleshooting

Infinite resistance indicates open circuit.
Near-zero resistance signals short circuit.
Out-of-tolerance readings require replacement.

How to Test an RTD Sensor (PT100/PT1000)

Understanding how to test temperature sensor ensures RTD accuracy in critical systems. PT100 and PT1000 sensors deliver stable performance when properly verified.

Method 1: Room Temperature Resistance Test

Disconnect the RTD from the system.
Use a precision ohmmeter.
Measure correct terminals carefully.
Follow 3-wire or 4-wire diagrams.
Record ambient temperature accurately.
Compare with datasheet values.
A PT100 at 20°C reads about 107.79Ω.
Out-of-tolerance results indicate faults.

Method 2: Ice Bath Verification

Prepare a stable 0°C ice bath.
Confirm temperature with reference equipment.
Immerse the sensing tip fully.
Stabilize for several minutes.
Measure resistance precisely.
PT100 should read near 100Ω.
PT1000 should read near 1000Ω.
Large deviation confirms failure.
This step supports how to test a temperature sensor reliably.

Method 3: Reference Sensor Comparison

Use a calibrated temperature bath.
Insert both test and reference RTDs.
Ensure equal immersion depth.
Allow full thermal stabilization.
Compare resistance readings directly.
Repeat across several temperatures.

Troubleshooting RTDs

Infinite resistance means open circuit.
Near-zero resistance indicates short circuit.
Incorrect 0°C value signals drift.
2-wire types include lead resistance.
Use 3-wire or 4-wire for accuracy.

How to Test a Thermocouple Accurately

Understanding how to test a temperature sensor includes verifying thermocouple performance. Proper checks ensure stable output in high-temperature systems.

Method 1: Resistance Check

Disconnect the thermocouple first.
Set the DMM to resistance mode.
Measure across both leads.
Normal resistance is low.
Infinite resistance means open circuit.
Replace faulty probes immediately.

Method 2: Ice and Boiling Water Test

Connect to a millivolt meter.
Ensure cold junction compensation.
Prepare a stable 0°C ice bath.
Immerse the sensing junction fully.
Output should be near 0 mV.

Place the probe in boiling water.
At 100°C, check mV output.
Compare with standard tables.
Type K reads about 4.0 mV.

Accurate validation supports how to test a temperature sensor in industrial environments. PTC and RTD devices follow different resistance principles, but precision measurement remains essential.

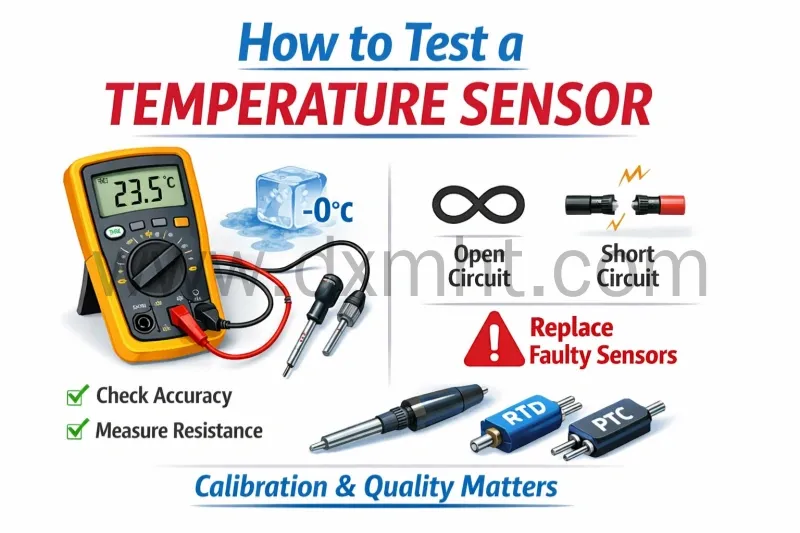

Interpreting Results After Testing Temperature Sensor

Understanding how to test temperature sensor is incomplete without correct result analysis. Accurate interpretation ensures reliable system control.

Pass Criteria

Readings must match datasheet tolerances.
Check values at key temperatures.
Stable resistance confirms normal operation.
This applies to NTC, PTC, and RTD devices.

Fail Indicators

Large deviation signals sensor drift.
Infinite resistance means open circuit.
Near-zero resistance shows short circuit.
Most sensors are not repairable.
Replace faulty units promptly.

Calibration and Replacement

Critical systems require calibration.
Adjust instruments to certified standards.
Verification supports how to test a temperature sensor in regulated environments.
Use high-quality replacements only.
PTC and precision RTD sensors must meet strict specifications.
Reliable sourcing ensures long-term performance and safety.
