What Is the Difference Between PTC and NTC Thermistors?

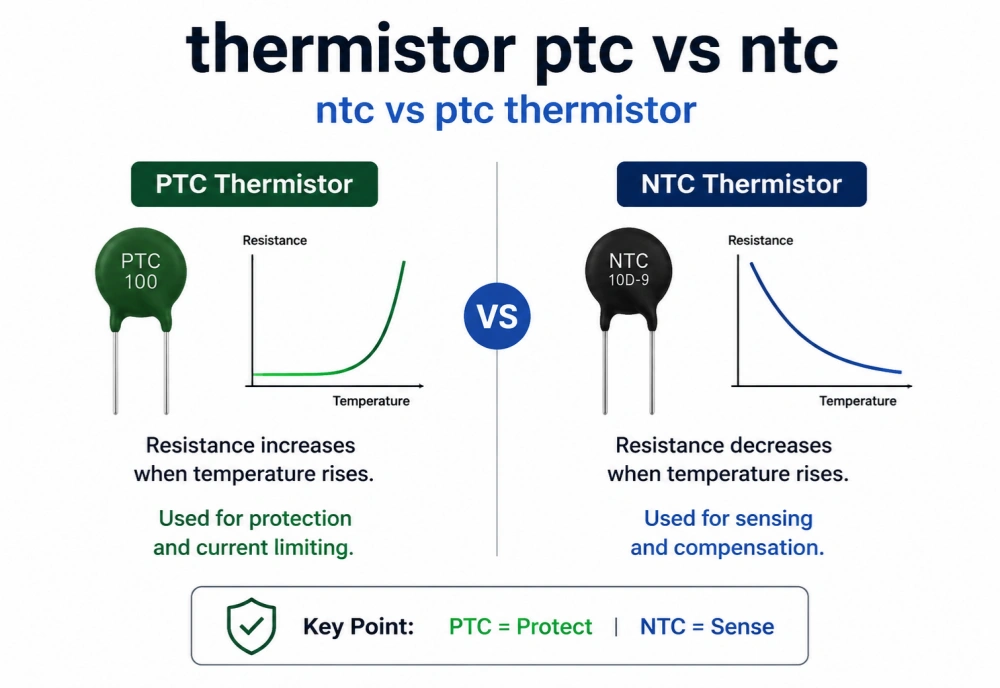

The main difference is the resistance-temperature relationship. A PTC thermistor has a positive temperature coefficient. Its resistance rises as temperature rises. An NTC thermistor has a negative temperature coefficient. Its resistance falls as temperature rises. This is the foundation of every thermistor ptc vs ntc comparison. It is also the first point in any ntc vs ptc thermistor design review. The simple definition is useful. It is not enough for final selection. Engineers must also identify the curve shape. A switching ceramic PTC has a steep transition. A linear PTC changes more gradually. An NTC usually follows a nonlinear curve across its rated range.PTC Thermistor: Designed for Protection and Control

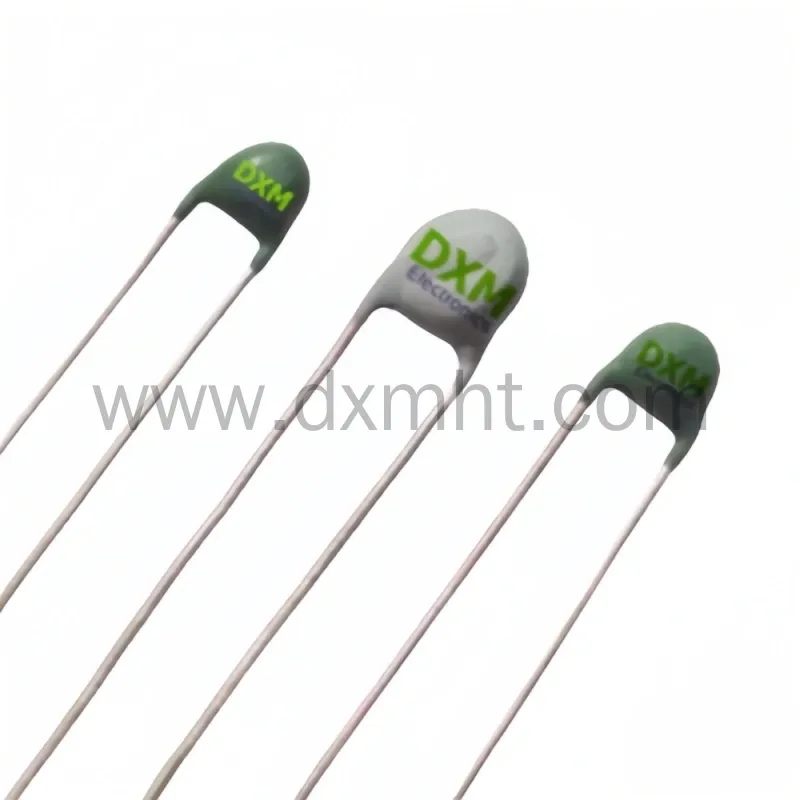

PTC thermistors are commonly used when a circuit needs protection against abnormal current or overheating. Under normal conditions, a switching PTC maintains relatively low resistance. When its temperature passes the switching region, resistance rises sharply. Current then falls. The heat may come from the surrounding equipment. It may also come from self-heating during excess current. This behavior explains why thermistor ptc vs ntc searches often lead to motor, transformer, telecom, and overload protection. Typical PTC applications include overcurrent protection, motor protection, transformer protection, compressor starting circuits, heater control, and telecom equipment protection. For motor windings, a PTC sensor often works with a protection relay. It detects the winding temperature. The relay then disconnects the motor. For current limiting, a PTC can be placed in the current path. Excess current heats the device. Its resistance rises and reduces the fault current. These are different circuit roles. Do not treat every PTC as a drop-in resettable fuse.
NTC Thermistor: Designed for Temperature Measurement
NTC thermistors are mainly used for temperature sensing. As temperature rises, resistance decreases. A controller measures that change. The controller converts resistance into temperature. It may use a lookup table, a beta equation, or Steinhart-Hart coefficients. Common NTC applications include battery monitoring, HVAC equipment, medical devices, consumer electronics, and temperature compensation. NTC thermistors provide high sensitivity across a selected range. Their small size can also provide fast response. However, the response is nonlinear. The circuit and firmware must account for that curve. A useful ntc vs ptc thermistor review checks accuracy, beta tolerance, self-heating, and the full resistance-temperature table. NTC devices also serve another role. High-energy NTC discs can suppress inrush current at power-up. That function differs from sensing. The device starts cold with higher resistance. Current heats it. Its resistance then falls. This exception matters when evaluating thermistor ptc vs ntc for power input circuits.
PTC vs NTC Thermistor Comparison
The table below gives the fast engineering view. Use it before opening detailed data sheets.| Feature | PTC Thermistor | NTC Thermistor | Design impact |
|---|---|---|---|
| Resistance change | Resistance increases with temperature | Resistance decreases with temperature | Changes polarity and control logic |
| Main function | Protection, switching, current control, limit sensing | Temperature sensing, compensation, inrush limiting | Select by circuit task |
| Typical curve | Sharp knee or gradual linear rise | Smooth nonlinear decline | Determines thresholds and calibration |
| Common parameters | R25, switching temperature, hold current, trip current, rated voltage | R25, beta value, R-T tolerance, dissipation factor, thermal time constant | Do not compare only nominal resistance |
| Circuit role | Safety component or threshold sensor | Analog sensor or power-entry limiter | Changes placement and test method |
| Response purpose | Prevent damage or trigger shutdown | Measure temperature or reduce startup surge | Defines pass and fail criteria |
| Recovery | Many protection types reset after cooling | Sensing types follow temperature continuously | Verify recovery time and residual heat |
How to Choose Between PTC and NTC Thermistors
The selection depends on the required function. Ask one question first: must the circuit protect itself, or must it report temperature? Choose a PTC thermistor when you need overcurrent protection, self-regulating thermal control, overtemperature detection, or current limiting after a fault. Choose an NTC thermistor when you need accurate temperature feedback, compensation, battery monitoring, or a cold-state inrush limiter. That simple filter resolves many ntc vs ptc thermistor searches. The next step is rating selection.Step 1: Define the electrical job
Write one clear sentence. Example: “The component must limit transformer fault current without opening permanently.” Another example: “The sensor must measure battery temperature from −20°C to 85°C.” This prevents a vague thermistor ptc vs ntc request from producing the wrong product family.Step 2: Separate normal and fault conditions
Record normal voltage and current. Then record the worst credible fault. Include ambient temperature. Include airflow. Include nearby heat sources. A PTC trip point changes with ambient temperature. An NTC reading changes with self-heating and mounting. Therefore, the ntc vs ptc thermistor choice must use the real assembly, not only room-temperature bench data. At this stage, thermistor ptc vs ntc identifies protection behavior, while ntc vs ptc thermistor confirms whether a sensing curve is required.Step 3: Check the right PTC parameters
- R25: resistance at 25°C.
- Switching temperature: the region where resistance rises strongly.
- Hold current: current that should not trip the part under stated conditions.
- Trip current: current expected to move the part into its high-resistance state.
- Maximum rated voltage: the allowed continuous or fault voltage.
- Response time: time to reach the protection state.
- Recovery time: time needed to cool and return.
- Operating range: allowed ambient and body temperature.
- Package and leads: mechanical fit, creepage, vibration, and solder process.
Step 4: Check the right NTC parameters
- R25: nominal resistance at 25°C.
- Beta value: a curve constant over a stated temperature interval.
- Resistance tolerance: initial resistance variation.
- Beta tolerance: curve variation between units.
- R-T table: the best reference for firmware calibration.
- Dissipation factor: power needed for a 1°C body rise.
- Thermal time constant: speed of response under stated conditions.
- Maximum power: safe electrical dissipation.
- Encapsulation: moisture, insulation, and thermal coupling performance.
R(T) = R(T0) × exp[B × (1/T − 1/T0)]
Temperature uses kelvin in that equation. For wider ranges, use the supplier table or Steinhart-Hart coefficients. This calculation detail adds depth to an ntc vs ptc thermistor evaluation. It also prevents avoidable calibration errors.
Step 5: Check thermal placement
Electrical ratings alone do not determine performance. A motor sensor must contact the winding correctly. A battery sensor must follow the cell temperature. A current-limiting PTC needs safe spacing from heat-sensitive parts. Potting compound changes response time. Airflow changes trip behavior. Copper area changes heat loss. A good thermistor ptc vs ntc decision includes the final thermal path.Application Examples: What Changes in Real Circuits?
Application context is where the comparison becomes useful.1. Motor winding protection
A motor can overheat during overload, locked rotor, phase loss, or poor cooling. A switching PTC can be embedded near the winding hot spot. Several sensors may be connected to a suitable relay. As winding temperature reaches the selected threshold, PTC resistance rises. The relay trips the contactor. In this case, thermistor ptc vs ntc favors a PTC threshold sensor. It gives a clear protection transition. An NTC can also monitor the winding. It is better when the controller needs continuous temperature data. The final ntc vs ptc thermistor choice depends on whether the system needs a trip threshold or a measured temperature value. For maintenance teams, thermistor ptc vs ntc also affects fault diagnosis, while ntc vs ptc thermistor affects how resistance readings are interpreted.2. Telecom line protection
Telecom lines can face lightning surges, power induction, and direct contact events. A PTC can support overcurrent protection when coordinated with the full protection network. DXM lists MZ21, MZ23, and MZ24 families for telecom protection. The product page states support for ITU-T K.20 and K.21 applications. Those standards address equipment resistibility against defined overvoltage and overcurrent events. The PTC must not be selected alone. Review the primary protector, voltage-limiting device, line impedance, test waveform, and reset behavior. For this use, thermistor ptc vs ntc normally favors PTC. A standard NTC sensing part is not the correct line protector.3. Refrigerator compressor starting
A single-phase compressor needs a start winding for initial torque. A PTC starter begins at lower resistance. It allows start-winding current. Self-heating then raises the PTC resistance. The start winding current falls. The component must cool before the next reliable start. Rapid restart attempts can leave the PTC hot. The compressor may fail to start. This is why the thermistor ptc vs ntc decision must include start frequency, ambient heat, and recovery time. DXM lists MZ6 series parts for refrigerator and air-conditioner motor starting.4. Welding machine and transformer overload protection
Welding equipment sees high current and repeated thermal stress. A ceramic PTC can react to abnormal current or heat. It then moves into a higher-resistance state. DXM lists 15P, 16P, and 19P formats for welding-machine overload protection. It also lists MZ31 and MZ8 types for broader overload use. The catalog shows a typical operating range of −25°C to 125°C for several protection families. Do not treat that range as universal. Confirm the exact part data sheet. For this application, ntc vs ptc thermistor usually resolves to PTC when automatic current reduction is required.5. Battery and HVAC temperature measurement
Battery packs need temperature feedback during charge and discharge. HVAC systems need coil, air, pipe, or refrigerant temperature data. An NTC in a divider circuit provides a low-cost analog signal. The controller converts voltage into resistance. It then calculates temperature. In these systems, ntc vs ptc thermistor usually favors NTC. Sensitivity and available curves make calibration practical. Check connector resistance, cable length, moisture sealing, and sensor interchangeability.6. Inrush current limiting
Both PTC and NTC parts can appear in inrush discussions. Their operating sequence differs. An NTC inrush limiter starts with higher cold resistance. It warms during operation. Its resistance then becomes lower. A PTC inrush design can use a different switching method. Its resistance rises with heating. The correct thermistor ptc vs ntc answer depends on the circuit topology, reset interval, steady-state loss, and fault requirement. Never replace one with the other only because the resistance value looks similar at 25°C.Why Engineers Choose PTC Thermistors for Circuit Protection
PTC thermistors can provide compact and repeatable protection. Many types reset after the abnormal condition disappears and the body cools. They operate without mechanical contacts. They can also reduce component count. That makes them useful in repeated protection cycles. However, “self-resetting” does not mean unlimited life. High fault energy, excessive voltage, poor cooling, or mechanical damage can degrade the part. A sound thermistor ptc vs ntc article must state that limit. Protection performance is conditional. DXM offers PTC families for lighting, ballast preheat, telecom protection, overload protection, refrigerator motor starting, welding machines, linear sensing, and SMD use. The range supports several design paths. The exact model still requires verification.Selecting the Right PTC Thermistor
Start with operating voltage, normal current, maximum fault current, and ambient temperature. Then define the desired trip time. Check the resistance value at the stated temperature. Check the full resistance-temperature curve. Review maximum voltage during the fault. Review power dissipation after trip. Check the available cooling path. Check spacing from plastic, wire insulation, and other components. A PTC that is too sensitive may cause nuisance protection. A PTC with weak response may not reduce current soon enough. This is the practical center of thermistor ptc vs ntc selection.How to Test the Choice Before Production
Bench testing should reproduce the final thermal and electrical environment. Do not test only one room-temperature sample.PTC validation sequence
- Measure cold resistance before power is applied.
- Run the minimum normal load at the highest expected ambient temperature.
- Confirm that the PTC does not nuisance trip.
- Apply the defined overload or external heat condition.
- Record current, voltage, body temperature, and trip time.
- Hold the fault for the required duration.
- Remove the fault and record recovery time.
- Repeat the cycle across several samples.
- Inspect resistance drift and physical damage.
NTC validation sequence
- Measure resistance at controlled reference temperatures.
- Compare results with the supplier R-T table.
- Measure divider current and estimate self-heating.
- Test the sensor inside the final housing.
- Record response during heating and cooling.
- Check cable, connector, and ADC errors.
- Verify calibration at the range limits.
- Test moisture and mechanical stress where relevant.
