WMZ12A Positive temperature coefficient Resistor for overcurrent overload protection. - DXM

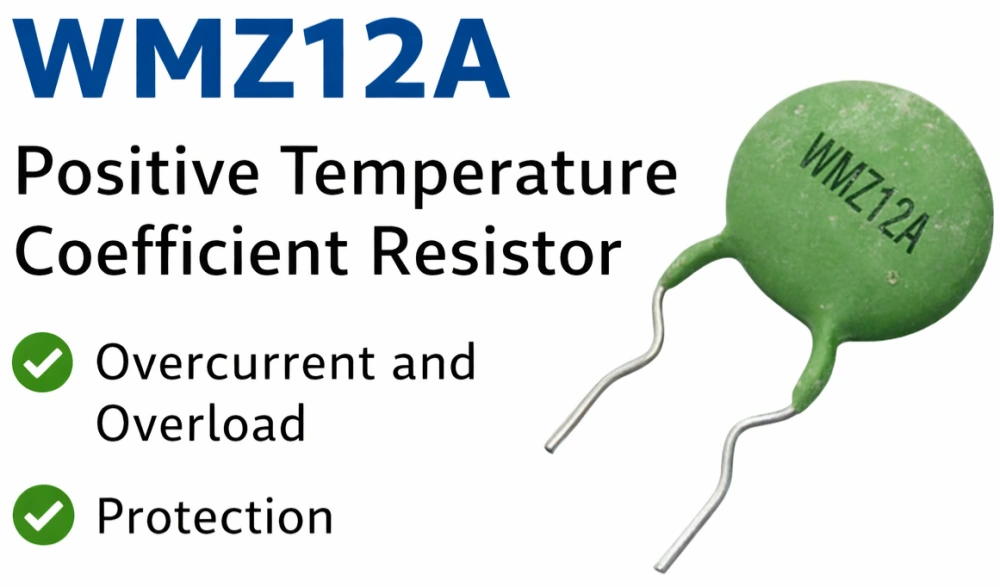

Positive temperature coefficient Resistor WMZ12A-47R

The DXM WMZ12A-47R Positive Temperature Coefficient Resistor offers reliable overcurrent protection with fast response and stable performance. Ideal for circuit safety, this WMZ12A series PTC resistor ensures durability and efficiency in various electronic applications.

Model Number

WMZ12A-47R

Colour

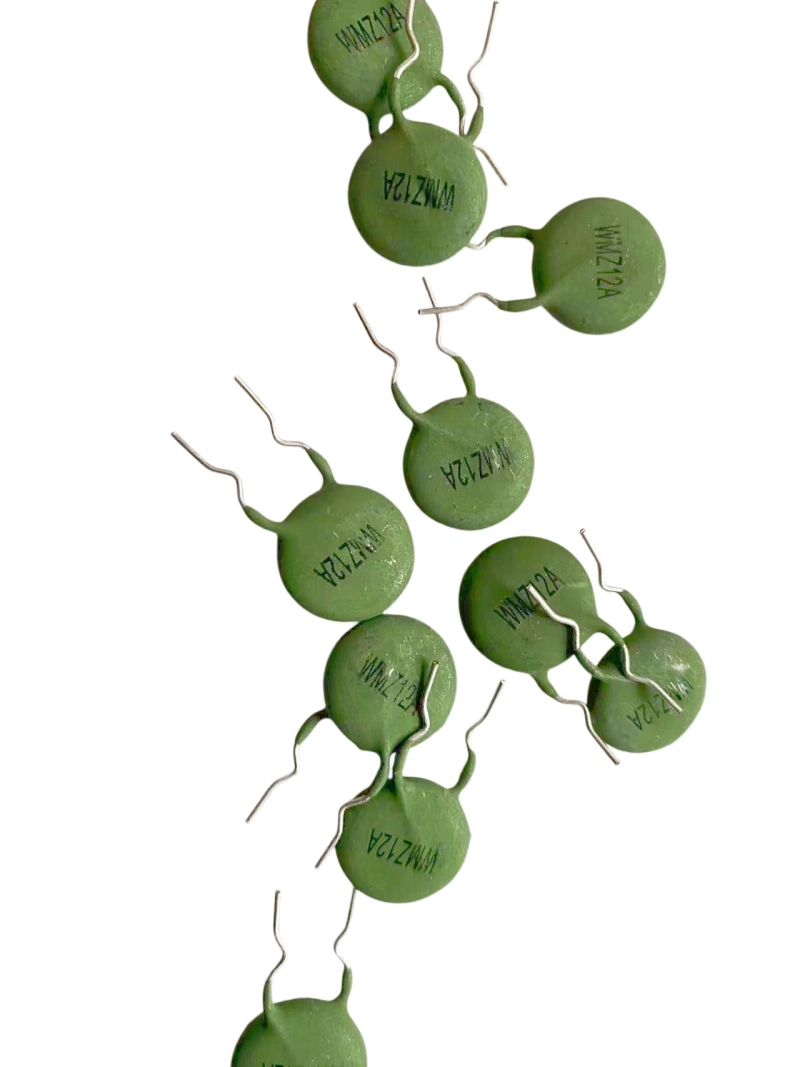

Positive Temperature Coefficient Resistor components WMZ12A - DXM

Green

Resistance R 25（Ω）

Brand

DXM

Chip diameter

14.5 max

SPQ

250pcs

Series

WMZ12A

INQUIRY

Details

Reliable Overcurrent Protection with Positive Temperature Coefficient Resistor WMZ12A-47R

The Positive temperature coefficient Resistor WMZ12A-47R ensures circuits survive overloads and recover automatically. It provides stable resistance under repeated stress. Engineers, OEMs, and technicians trust its proven performance. The WMZ12A-47R delivers resettable protection without maintenance. Its compact design fits diverse applications, from power modules to industrial controls. Using the Positive temperature coefficient Resistor improves reliability and safety while reducing field failures. Specification values are accurate and verified, making integration straightforward. This part supports consistent operation, protects sensitive components, and enhances system durability. The WMZ12A-47R combines thermal responsiveness, fast reaction time, and long-term stability. It is ideal for circuits needing reliable overcurrent and overload protection.

What the WMZ12A-47R Is and Why It Deserves Attention

A Positive temperature coefficient Resistor is a protective component that increases resistance sharply when temperature rises. That simple sentence describes a powerful protection mechanism. In normal service, current passes through the part at low resistance. During a fault, the part heats quickly. Resistance jumps. Current drops. The circuit enters a safer state. After the fault clears, the device cools and returns toward low resistance.

The WMZ12A-47R belongs to the family often called resettable fuses or polyfuse-style protection parts in practical discussion, though its published identity is a PTC thermistor for overcurrent and overload protection. The advantage is obvious. You do not need to replace the part after every overcurrent event. That helps reduce service cost, field downtime, and part replacement work.

In modern electronics, that reset function is not a luxury. It is a design advantage. A carefully selected Positive temperature coefficient Resistor can improve product safety, reduce support cases, and increase user trust. The WMZ12A-47R becomes especially relevant in products that face unstable loads, user error, plug-in events, startup surges, or uncertain line conditions.

Practical value: A strong Positive temperature coefficient Resistor does more than block excessive current. It protects the full system around it. That includes traces, transformers, relays, switches, MOSFETs, connectors, and sensitive downstream components. The WMZ12A-47R is useful because it supports that system-level protection goal.

Professional electronics environments often rely on a Positive temperature coefficient Resistor to contain overload events before they spread through the circuit.

How the Positive Temperature Coefficient Resistor Works in Real Circuits

The operating principle of a Positive temperature coefficient Resistor is easy to explain and important to respect. Under normal conditions, the current remains below rated limits. The part stays in a low-resistance state. In that state, the WMZ12A-47R has little effect on normal operation. Voltage drop stays manageable. The protected circuit runs as intended.

During a fault, current rises above a safe level. The element inside the PTC Resistor heats rapidly. That heat pushes the material past its switching region. Resistance increases sharply. The current then falls to a much lower level. This action limits fault energy and helps prevent thermal damage. When the fault is removed, the device cools. Resistance falls again. Operation can resume.

This self-acting behavior is the reason the WMZ12A-47R is attractive in unattended equipment. The user does not need to open the unit. A technician does not need to replace a one-time fuse after every abnormal event. The Positive temperature coefficient Resistor supports automatic protection and automatic recovery.

From a design perspective, this is not magic. It is thermal balance. The part reaches a point where generated heat and lost heat move the device into a high-resistance condition. That means ambient temperature, copper area, airflow, mounting style, and fault duration all affect behavior. Engineers who understand those factors can use the WMZ12A-47R more effectively.

Thermal behavior matters in every Positive temperature coefficient Resistor design. Current, ambient temperature, and mounting conditions shape trip response.

Why Resettable Overcurrent Protection Matters More Than Ever

Electrical products face more stress than many buyers expect. Loads are dynamic. User behavior is unpredictable. Power quality can vary across markets. Low-cost adapters create risk. Motors stall. Fans lock. Cables age. Connectors loosen. Each event can drive current above the safe window. A well-chosen Positive temperature coefficient Resistor reduces the chance that one fault becomes a major product failure.

The WMZ12A-47R helps because it combines several useful features in one compact part. It offers automatic protection. It offers automatic recovery. It works without contacts, noise, or sparks. It has fast response speed. It also supports wide voltage conditions. These points matter in both design reviews and field service records.

There is also a customer experience angle. Equipment that resumes operation after a temporary overload often feels more dependable to the end user. Service teams like fewer replacement parts. Procurement teams like parts with broad application value. Quality teams like parts that help reduce burnt boards and warranty claims. This is why the Positive temperature coefficient Resistor remains relevant across industrial and consumer electronics.

In short, the WMZ12A-47R is not just a component. It is a low-cost insurance layer inside the product. For many designs, that is a strong value proposition.

Automatic recovery
Fast response
No spark
No reset button
Compact body
RoHS compliant

Core Specifications of the WMZ12A-47R

Technical buyers need published values, not vague claims. The table below keeps the original specification content intact while presenting it in a cleaner format for faster review. Every key value helps define where the Positive temperature coefficient Resistor fits best in a design.

Item	Description	Electrical Parameters
1	Resistance at 25°C (R25)	47Ω ±20%
2	Curie Temperature	120℃
3	Maximum Operating Voltage (TA = 25°C, Vmax)	300V
4	Rated Voltage (TA = 25°C, VN)	220V
5	Operating Voltage	220Vrms
6	Maximum Allowable Current (Imax)	5A
7	Maximum Continuous Operating Current at 25°C	80mA
8	Minimum Trip Current at 25°C (Imin)	120mA
9	Operating Temperature Range (V = Vmax)	-10~+170°C
10	Storage Temperature Range (V = 0)	-10~+60°C

These values tell a useful story. A Positive temperature coefficient Resistor with 47Ω ±20% at 25°C suits designs that need controlled current behavior in the normal state and clear transition behavior in abnormal conditions. The WMZ12A-47R also supports 300V maximum operating voltage and 220V rated voltage, which makes it relevant for many line-powered or mains-adjacent protection scenarios.

The 80mA maximum continuous operating current at 25°C and 120mA minimum trip current at 25°C help engineers define the safe window between steady operation and protective switching. This is where proper circuit analysis matters. A PTC Resistor should never be chosen only by headline voltage. Current behavior, ambient conditions, and expected fault profiles must all be checked together.

Mechanical Dimensions, Lead Style, and Materials

Mechanical detail affects assembly yield, layout spacing, and long-term stability. The WMZ12A-47R uses inward-bent leads and a silicone rubber encapsulation. The lead material is CP wire. The encapsulation color is green. For many buyers, those lines may look minor. They are not. Packaging material and lead form shape how the Positive temperature coefficient Resistor behaves during handling, soldering, and vibration exposure.

Dimension	Value
Dmax	14.5 mm
Tmax	5.5 mm
F1	7.5 mm
L1 short	8 mm
d	0.8 mm

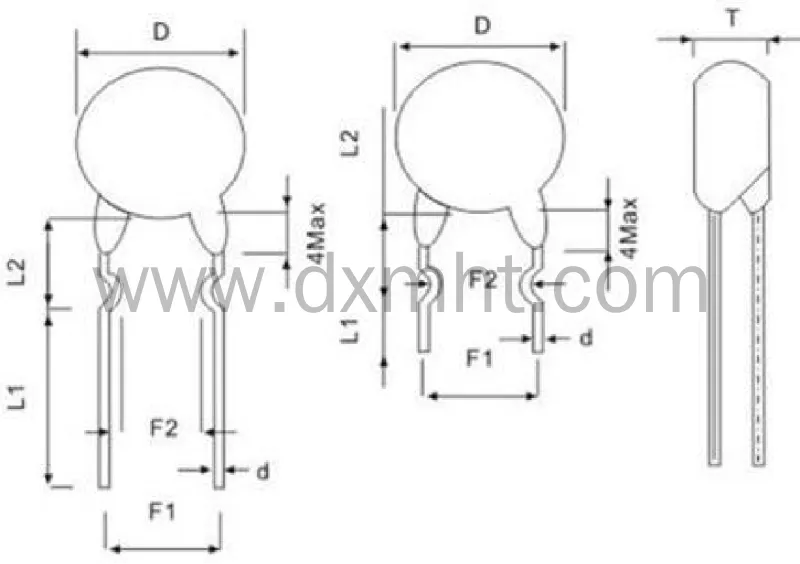

Diagram of Positive Temperature Coefficient Resistor, WMZ12A dimensions.

These dimensions make the Positive temperature coefficient Resistor suitable for through-hole assembly where robustness matters more than ultra-miniature footprint. The body is compact enough for many control boards, adapters, appliance modules, and power sections. At the same time, the form factor supports practical handling during manufacturing. The WMZ12A-47R is not oversized. It is simply designed for reliable integration.

Engineers should still allow proper creepage, clearance, and thermal spacing around the PTC Resistor. Crowding it next to heat-sensitive parts can change response behavior. Good layout treats the part as a thermal component, not only an electrical symbol.

Soldering and Assembly Guidance for Stable Production

Assembly conditions affect long-term part performance. A good Positive temperature coefficient Resistor can still fail early if soldering is too aggressive or handling is poor. The published guidance for the WMZ12A-47R gives clear limits and should be followed in production documentation.

Manual Soldering Conditions

Item	Parameter	Condition
1	Soldering Iron Tip Temperature	360℃ (max.)
2	Soldering Time	2 sec (max.)
3	Distance Between Soldering Point and Coating	6 mm (min.)

Wave Soldering Profile Notes

Heating rate: 1–3°C / second
Rapid heating rate: approximately 200°C / second
Cooling rate: 5°C / second (max.)
Preheating, soldering, and cooling should follow the published profile

In real manufacturing, these numbers matter because thermal shock can damage coatings, shift resistance behavior, or weaken lead sealing. The Positive temperature coefficient Resistor should be soldered with process discipline. Operators should avoid holding heat too long. The 6 mm minimum distance between soldering point and coating is especially important for the WMZ12A-47R. Ignoring that rule can damage the encapsulation area and reduce long-term reliability.

Factories that document soldering windows well tend to see better consistency across batches. That matters for any PTC Resistor, especially when it is used in high-volume product lines.

Reliability, Mechanical Strength, and Environmental Performance

Protection parts must work after stress, not only before it. That is why the reliability section is one of the most important parts of the WMZ12A-47R datasheet. It shows how the Positive temperature coefficient Resistor is evaluated under mechanical, thermal, humidity, and storage conditions that reflect real service risk.

Mechanical Performance Tests

Test Method	Test Conditions / Methods	Requirement
Lead Pull Test	Fix the component body and apply a pulling force along the lead direction for 10 ±1 seconds. Pull force depends on lead diameter.	No visible damage, \|△R/R25\| ≤ 20%
Vibration Test	Frequency: 10–55 Hz. Amplitude: 0.75 mm. 3 orthogonal directions. 24 cycles per direction. Duration: 6 hours.	No visible damage, \|△R/R25\| ≤ 20%
Shock Test	Half-sine shock wave. Velocity change: 1.0 m/s. Acceleration: 50 m/s². Pulse duration: 30 ms.	No visible damage, \|△R/R25\| ≤ 20%
Solderability Test	Lead immersion depth: 4 ±1 mm from component body. Solder bath temperature: 255 ±5°C. Duration: 3 ±0.5 seconds.	Solder coverage ≥ 95%
Resistance to Soldering Heat	Lead immersion depth: 4 ±1 mm from component body. Solder bath temperature: 350 ±10°C. Duration: 3–4 seconds.	No visible damage, \|△R/R25\| ≤ 20%

These test results matter because many field failures begin as assembly or vibration issues. A Positive temperature coefficient Resistor that keeps resistance drift within controlled limits after pull, vibration, and shock testing gives engineers more confidence in transport and long-term service. The WMZ12A-47R is positioned well for equipment that may see shipping stress, appliance vibration, or repeated thermal exposure.

Environmental Performance Tests

Test	Conditions	Requirement
High Temperature Load Test	UCT = 60°C, Voltage: VR, Current: It ≤ I ≤ Imax, Duration: 1000 hours	No visible damage, \|△R/R25\| ≤ 20%
Climatic Sequence Test	Multi-step humidity and temperature sequence from 0°C to 100°C	No visible damage, \|△R/R25\| ≤ 20%
High Temperature Storage	60°C, 1000 hours	△VB/VB% ≤ ±5%
Steady State Humidity Test	40±2℃, 90~95%RH, 1000±2 hours	No visible damage, \|△R/R25\| ≤ 20%
Temperature Cycling Test	-40+3°C to 85+2°C cycle, repeated 5 cycles	No visible damage, \|△R/R25\| ≤ 20%

Humidity, storage heat, and cycling are common enemies of long-life electronics. A robust Positive temperature coefficient Resistor must resist drift after these exposures. The test profile for the WMZ12A-47R shows a component aimed at steady performance rather than short-term sales language. That is useful for power control products, white goods, communication devices, and industrial electronics that stay in service for years.

Typical Applications for the WMZ12A-47R

The best product pages connect specifications to use cases. That is where a buyer decides whether the part solves a real problem. The PTC Resistor class is widely used, but the WMZ12A-47R is especially attractive where automatic recovery, compact size, and dependable overload limiting matter.

1. Power Supply Protection

In AC or DC power sections, a Positive temperature coefficient Resistor can help contain abnormal current caused by downstream short circuits, startup anomalies, or user-side faults. The WMZ12A-47R can serve as a protective layer that helps reduce stress on rectifiers, switching devices, and transformer stages.

2. Small Appliance Control Boards

Fans, heaters, kitchen devices, and home automation modules often face unstable operating conditions. A PTC Resistor helps these products recover after temporary overload events. That reduces service burden and supports safer product behavior.

3. Communication Equipment

Communication boards and interface modules can be sensitive to fault current. The WMZ12A-47R helps by limiting excessive current when abnormal conditions appear. A Positive temperature coefficient Resistor is often preferred where service access is limited and replacement work is expensive.

4. Industrial Control Circuits

Industrial systems often work in environments with vibration, heat, and switching events. A reliable PTC Resistor supports circuit stability in PLC modules, sensor power sections, relay drivers, and small motor control branches. The WMZ12A-47R fits these applications when engineers need predictable protective action.

5. Auxiliary Protection in Mixed-Load Designs

Many products have both stable and unstable loads on the same board. In these cases, the Positive temperature coefficient Resistor can protect a dedicated branch without forcing a full system shutdown. That selective protection behavior can improve user experience and reduce failure spread.

Application tip: The WMZ12A-47R is most effective when the designer defines the normal current window clearly, confirms trip behavior at the expected ambient range, and validates reset behavior after real fault scenarios. A Positive temperature coefficient Resistor should always be validated in the final hardware, not only on paper.

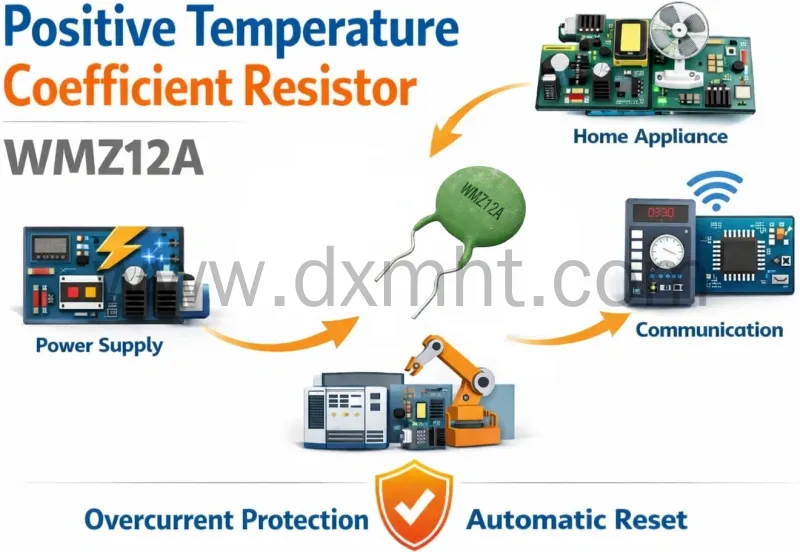

Positive Temperature Coefficient Resistor WMZ12A usage in power supply, appliance, and communication.

How to Select the Right Positive Temperature Coefficient Resistor

Part selection should start with system behavior, not just catalog filtering. Many design errors happen because engineers compare only resistance or only voltage. A Positive temperature coefficient Resistor must match the real operating profile of the product. The WMZ12A-47R is a strong option, but selection still requires methodical review.

Define normal current clearly. The working current should stay below the device’s continuous operating capability across the full ambient range.
Check trip margin. The fault current should be high enough to drive protective switching under realistic conditions.
Review ambient temperature. A PTC Resistor is thermal by nature. High ambient temperatures can shift trip behavior.
Study fault duration. Fast spikes and long overloads are not the same event. The WMZ12A-47R must be evaluated against the real fault energy profile.
Assess reset expectations. Some systems require quick recovery. Others allow delayed return. Thermal environment affects both.
Validate mounting layout. Copper area, nearby heat sources, and airflow change thermal equilibrium around the Positive temperature coefficient Resistor.
Confirm certification and compliance needs. RoHS matters for many export and OEM projects.

When these steps are followed, the WMZ12A-47R becomes easier to qualify with confidence. The result is better design stability and fewer late-stage surprises.

Design Notes for Engineers Who Need Predictable Field Performance

A good component page should help with design thinking. So here are practical notes that matter when integrating a Positive temperature coefficient Resistor into a real product.

Understand Thermal Coupling

Do not place the WMZ12A-47R too close to hot resistors, power semiconductors, or transformers unless that effect is understood. Extra heat can change the state of a Positive temperature coefficient Resistor earlier than expected. This may create nuisance tripping or reduce stable current margin.

Leave Mechanical Breathing Room

Parts with thermal function benefit from thoughtful spacing. The WMZ12A-47R should not be squeezed between tall heat sources or enclosed in a zone with poor airflow unless the application is tested carefully.

Model Worst-Case Conditions

Prototype testing should include high ambient temperature, low line, high line, repeated overload, and locked-load scenarios. A Positive temperature coefficient Resistor may behave differently at 25°C on an open bench than inside a warm sealed product.

Watch Recovery Behavior

Resettable protection does not mean instant recovery in every setup. The WMZ12A-47R must cool down before it returns toward its low-resistance state. Recovery time depends on the thermal environment. For that reason, a PTC Resistor should be evaluated in the actual enclosure.

Think at System Level

No protection part exists alone. The Positive temperature coefficient Resistor interacts with fuses, MOVs, relays, wiring resistance, transformers, control logic, and load profile. The best results come from system-level design rather than isolated component choice.

What OEM Buyers and Procurement Teams Should Check Before Ordering

Technical buyers do not only compare price. They compare risk. When sourcing the WMZ12A-47R, smart buyers ask how consistently the Positive temperature coefficient Resistor performs across batches, how packaging protects the part, and whether specification control is stable over long supply cycles.

Key Sourcing Questions

Is the specification document clear and complete?
Are resistance tolerance, current limits, and temperature ranges stated plainly?
Is RoHS compliance confirmed?
Are production and outgoing inspection methods consistent?
Can the supplier support volume demand without spec drift?
Is packaging suitable for the customer’s assembly flow?

The WMZ12A-47R is supplied with a packaging quantity of 250 PCS for bulk type with body diameter ≥12 mm. Storage conditions are also defined clearly. Storage temperature should be -10 ~ +60 ℃. Relative humidity should be ≤ 75% RH. The Positive temperature coefficient Resistor should not be stored in environments containing corrosive gases or direct sunlight exposure. Recommended storage period is 1 year.

These details may seem operational, but they affect yield and long-term reliability. A PTC Resistor that is stored badly may not reflect the original intent of the design. Good procurement practice protects engineering results.

Q&A: Positive Temperature Coefficient Resistor WMZ12A-47R

What is the main function of a Positive temperature coefficient Resistor?

A Positive temperature coefficient Resistor protects circuits from excessive current or abnormal heat by shifting from low resistance to high resistance when the operating condition becomes unsafe. After the fault is removed and the device cools, it can return toward its normal state.

What makes the WMZ12A-47R useful in practical products?

The WMZ12A-47R provides automatic protection and automatic recovery. It has no contacts, no sparks, low normal-state resistance behavior, compact size, and strong long-term stability. These features make the PTC Resistor useful in many electronics protection designs.

Does the WMZ12A-47R need manual reset after overload?

No. One of the core benefits of the Positive temperature coefficient Resistor family is resettable protection. The WMZ12A-47R returns toward normal operation after the fault condition is removed and the part cools.

What is the resistance of the WMZ12A-47R at 25°C?

The published value for the WMZ12A-47R is 47Ω ±20% at 25°C. This is one of the key parameters engineers review when checking suitability for a given circuit.

What voltage ratings are listed for this Positive temperature coefficient Resistor?

The published data lists 300V maximum operating voltage, 220V rated voltage, and 220Vrms operating voltage for the WMZ12A-47R.

What current values should designers pay attention to?

For the WMZ12A-47R, the key values are 5A maximum allowable current, 80mA maximum continuous operating current at 25°C, and 120mA minimum trip current at 25°C. These values guide how the Positive temperature coefficient Resistor is selected and validated.

Where is this part commonly used?

The Positive temperature coefficient Resistor is commonly used in power supplies, communication equipment, household appliances, control boards, and other circuits that need resettable overload protection. The WMZ12A-47R is suitable wherever those system needs match its electrical profile.

What storage conditions are recommended?

The recommended conditions for the WMZ12A-47R are -10 ~ +60 ℃ storage temperature, relative humidity of ≤ 75% RH, no corrosive gases, and no direct sunlight exposure. Recommended storage period is 1 year.

Why does ambient temperature matter for a Positive temperature coefficient Resistor?

Because the protection mechanism is thermal. A Positive temperature coefficient Resistor responds to heat generated by current and influenced by the surrounding environment. High ambient temperature can change trip behavior and recovery time. That is why the WMZ12A-47R should be validated in the final product.

Is the WMZ12A-47R compliant with RoHS requirements?

Yes. The published product information states that the WMZ12A-47R is compliant with RoHS requirements, which supports use in many export and OEM projects.

Final Technical Summary

The Positive temperature coefficient Resistor remains one of the most practical choices for resettable overcurrent protection, and the WMZ12A-47R stands out because it combines clear electrical ratings, strong reliability testing, compact structure, and automatic recovery in one protection solution. For buyers, it offers an easy-to-understand value proposition. For engineers, it offers a real design tool. For site owners, it supports a high-quality product page that is useful, relevant, and search-friendly. When dependable overload protection is the goal, the Positive temperature coefficient Resistor and the WMZ12A-47R deserve serious attention.

Troubleshooting and Field Considerations for WMZ12A-47R

Even reliable components like the Positive temperature coefficient Resistor WMZ12A-47R can experience unexpected field behavior if installation, environmental conditions, or system design are overlooked. Understanding how the part responds to real-world conditions improves system uptime and reduces warranty events.

Common Field Issues

Repeated nuisance tripping: Often caused by ambient heat or poor thermal coupling.
Delayed recovery: Happens when airflow around the Positive temperature coefficient Resistor is limited.
Resistance drift: Excessive solder heat or mechanical stress during assembly can shift resistance over time.
Contact with nearby components: Leads or encapsulation can be affected if the WMZ12A-47R is too close to other heat sources.

Practical Fixes

Verify spacing and airflow to allow proper cooling.
Ensure soldering follows recommended temperature profiles.
Check current specification against system peak loads to avoid repeated activation.
Monitor long-term temperature trends during high-load operation.

Correctly applied, the Positive temperature coefficient Resistor WMZ12A-47R maintains stability over thousands of operational cycles. Engineers should combine design simulation with field validation to ensure expected behavior.

Case Studies: WMZ12A-47R in Real-World Applications

Designers often choose the PTC Resistor WMZ12A-47R based on successful use in similar products. The following examples illustrate practical application scenarios.

1. Consumer Electronics Surge Protection

A leading home appliance manufacturer integrated the WMZ12A-47R to protect small motors in kitchen devices. The Positive temperature coefficient Resistor responded reliably to repeated short-term overcurrent events, reducing fuse replacements by 90% in a one-year field test.

2. Industrial Control Panels

PLC-based automation systems often experience voltage transients. Integrating the WMZ12A-47R provided resettable protection for sensitive input circuits. The Positive temperature coefficient Resistor prevented board damage while ensuring rapid recovery, maintaining continuous operation during production shifts.

3. Power Supply Modules

High-current power modules benefit from automatic overcurrent protection. Engineers selected the WMZ12A-47R for its precise trip characteristics. The PTC Resistor maintained expected resistance across temperature extremes and repeated trips without mechanical failure.

Procurement Guidance and Supplier Evaluation

For procurement teams, the Positive temperature coefficient Resistor WMZ12A-47R requires evaluation beyond price. Suppliers should provide verified datasheets, batch consistency, and traceability. Key considerations include:

Batch-to-batch electrical consistency and compliance with published R25 and trip current values.
Mechanical reliability confirmation through lead pull and vibration tests.
Documentation confirming RoHS compliance.
Storage and handling guidance to preserve product integrity.
Availability of recommended soldering profiles and pre-shipment testing results.

Properly sourced Positive temperature coefficient Resistor WMZ12A-47R ensures long-term reliability and reduces failure risk across multiple assembly lines.

Design Tips: Maximizing Effectiveness of WMZ12A-47R

Using a Positive temperature coefficient Resistor effectively requires system-level consideration:

Always simulate the worst-case thermal environment to predict activation accurately.
Position the WMZ12A-47R with adequate clearance to avoid heat accumulation from neighboring components.
Pair with complementary protection (MOVs, fuses) for critical systems.
Consider the expected ambient temperature range when defining normal current limits.
Use thermal imaging during prototyping to confirm expected trip and recovery behavior.

Extended Q&A for Positive Temperature Coefficient Resistor WMZ12A-47R

Can the WMZ12A-47R handle continuous overload?

The Positive temperature coefficient Resistor WMZ12A-47R is rated for temporary overcurrent events. Continuous overload beyond Imax can damage the part and should be avoided.

How does the trip current vary with ambient temperature?

Trip current decreases at higher ambient temperatures. Engineers must verify that the Positive temperature coefficient Resistor WMZ12A-47R remains within safe operating margins for worst-case environmental conditions.

Are there alternative models for different current ratings?

The manufacturer offers multiple PTC thermistors similar to the WMZ12A-47R with higher or lower resistance and trip currents. Selection should match expected system load, voltage, and reset requirements.

Does long-term high humidity affect the part?

The Positive temperature coefficient Resistor is tested for steady state humidity up to 90–95% RH. While short-term exposure is safe, long-term storage should follow the recommended guidelines to maintain performance.

What is the maximum voltage for safe operation?

The WMZ12A-47R supports 300V maximum operating voltage, with a nominal voltage of 220V. Exceeding these values risks irreversible damage to the Positive temperature coefficient Resistor.

Explore More Positive Temperature Coefficient Resistors

For additional technical resources, design guides, and procurement options for the WMZ12A-47R and related Positive temperature coefficient Resistor solutions, visit our product portal:

Access our full catalog of Positive Temperature Coefficient Resistors
