PT1000 Temperature Sensor: DXM Precision Platinum RTD Solutions

Unlock Precision with DXM PT1000 Temperature Sensor

The PT1000 sensor offers unmatched accuracy and reliability, crucial for various industrial applications. As a leading pt1000 temperature sensor manufacturer, DXM ensures optimal performance through innovative engineering. With over 29 years of experience, DXM is one of China’s largest ISO 9001:2008-certified electronics manufacturers.

We specialize in cutting-edge electronic components like NTC and PTC thermistors, varistors, and temperature sensors, used in industries such as automotive, electronics, home appliances, and telecommunications.The DXM PT1000 temperature sensor guarantees precision and stability, reinforcing our commitment to high-quality, advanced solutions.

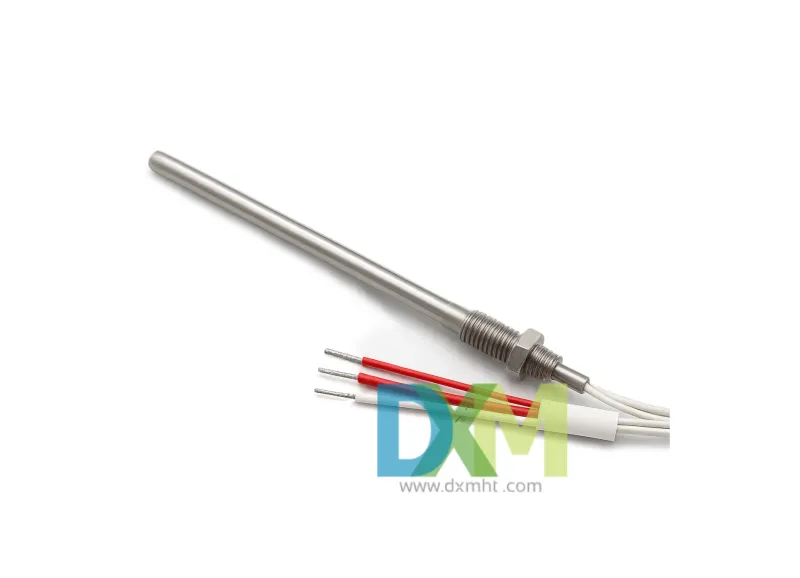

Key Features of PT1000 Sensor PT1000-SS300L4MM12

PT1000 Sensor Technical Requirements

The PT1000 sensor is a precision device engineered for stable and accurate temperature measurement. This sensor delivers reliable performance across industrial and laboratory environments.

Operating Temperature: −200 °C to 250 °C, with short-term resistance up to 300 °C.
Insulation Parameters: 500 VDC in air, greater than 500 MΩ.
Withstand Voltage: 1500 VAC, 1 mA, 2 seconds.
Compliance: All materials used in the PT1000 sensors meet ROHS and REACH environmental standards.

This specification ensures excellent durability, electrical stability, and temperature accuracy, making the PT1000 temperature sensor ideal for precision monitoring in demanding applications.

Main Parameters of PT1000 Sensor PT1000-SS300L4MM12

The PT1000 sensor is a high-precision temperature sensor widely used in various industrial applications. Below is a detailed breakdown of its components, specifications, and features:

The DXM PT1000 Sensor: Engineered for Excellence

The DXM PT1000 temperature sensor belongs to our esteemed sensor Series, ingeniously combining the principles of Resistance Temperature Detectors (RTD) with cutting-edge thin-film technology. At its core, it utilizes a sophisticated platinum resistance element, meticulously structured as a thin film on a high-quality ceramic substrate. This advanced design ensures not only superior performance but also exceptional durability.

Advantages:

1.Unmatched Precision and Stability:

Platinum as the Gold Standard:

Our PT1000 sensor leverages pure platinum as the resistive material, celebrated for its inherent stability and linearity across a wide temperature range. This choice guarantees consistently accurate readings and exceptional long-term stability, minimizing drift over time.

* DIN EN 60751 Compliance:

The characteristic curve of our platinum RTD strictly adheres to the globally recognized DIN EN 60751 standard. This compliance assures you of predictable, repeatable performance that meets international benchmarks for accuracy and interchangeability.
* Nominal Resistance of 1000Ω:

 With a nominal resistance of 1000Ω at 0°C, the pt1000 temperature sensor offers a higher resistance value compared to PT100, enabling higher resolution temperature measurement and reducing the impact of lead wire resistance on overall accuracy, especially over longer distances.

2. Rapid Response for Dynamic Control Systems:

*Low Time Constant:

 Thanks to its compact size and lightweight construction, the DXM PT1000 boasts a remarkably low time constant. This means it can detect and respond to temperature changes with exceptional speed.
* Fast & Precise Feedback:

 This rapid responsiveness makes the DXM PT1000 an ideal solution for fast and precise feedback control systems, where quick temperature adjustments are crucial for optimal process efficiency and safety.

3. Robust and Versatile Construction:

Enhanced Durability:

The delicate welding points of the platinum thin film are meticulously protected by a robust glass encapsulation. This not only shields the sensitive elements from environmental factors but also enhances the sensor's overall longevity and reliability in demanding conditions.
* Optimized Lead Wire Options:

 DXM understands that different applications demand different solutions. Our PT1000 sensor offers a variety of lead wire materials, each chosen for specific performance characteristics:
* Platinum-Nickel Wires:

 A versatile and robust choice, ideal for a wide range of general-purpose products and various temperature grades.
* Silver-Nickel Wires:

 Suited for applications in mid to low-temperature ranges, offering excellent conductivity and stability.
* Pure Platinum Wires:

 Frequently employed for high-temperature welding applications where extreme thermal resilience is required.
* Silver-Palladium Wires:

 Often utilized in lower-temperature welding applications, balancing cost-effectiveness with performance.
This thoughtful selection ensures optimal electrical connection and mechanical integrity tailored to your specific operational environment.

Applications: Where Precision Matters Most

The superior characteristics of the DXM PT1000 Temperature Sensor make it indispensable across a vast array of critical applications:
* Industrial Automation:

 Process control, machinery temperature monitoring, HVAC systems.
* Automotive Electronics:

 Engine temperature, cabin climate control, battery management systems.
* Consumer & Home Appliances:

 Ovens, refrigerators, smart home climate control, water heaters.
* Power Electronics:

 Power supply monitoring, transformer temperature sensing.
* Medical Devices:

 Incubators, diagnostic equipment, sterilization processes.
* Telecommunications:

 Base station temperature management, network equipment cooling.

RTD PT1000 Sensor Wiring Diagram

Why Choose DXM? Your Partner in Reliable Temperature Sensing

When you select the DXM PT1000 Temperature Sensors, you're not just buying a component; you're investing in nearly three decades of pioneering expertise, relentless innovation, and uncompromising quality.
* Proven Expertise:

 With over 29 years in sensitive electronic component manufacturing, our knowledge is unmatched.
* Certified Quality:

 Our ISO 9001:2008 certification is a testament to our stringent quality management systems and commitment to excellence.
* Advanced R&D:

 Our powerful research and development capabilities ensure that you receive cutting-edge technology designed for future challenges.
* Comprehensive Solutions:

 From standard products to custom designs, we provide tailored temperature sensing solutions to meet your unique project requirements.
* Trust and Reliability:

 We build products that engineers trust, ensuring peace of mind and operational efficiency for our customers worldwide.

Ready to elevate your temperature measurement accuracy and reliability? Experience the DXM difference.
Contact DXM today to learn more about our PT1000 Temperature Sensor and discover how our expertise can power your next innovation.
