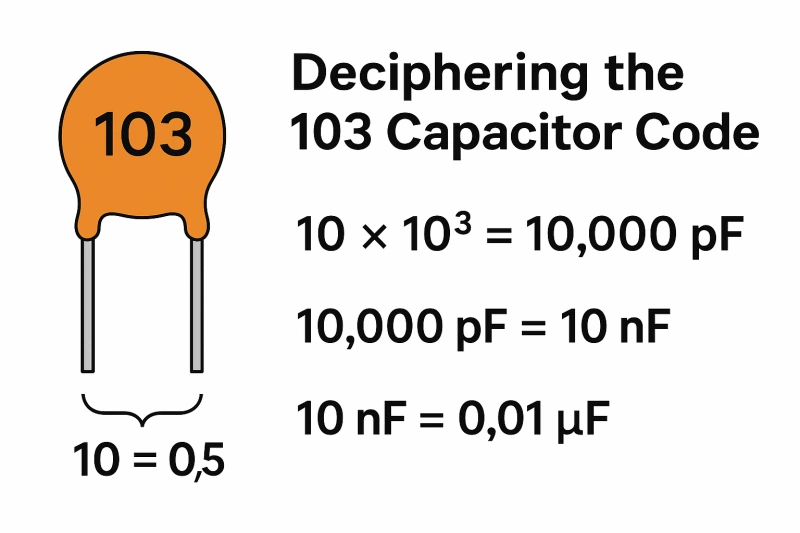

Deciphering the 103 Capacitor Code: Understanding Capacitor Markings

One of the first steps to mastering the 103 capacitor is to understand its alphanumeric designation. The 103 marking is a standardized code, primarily used for ceramic capacitors, that directly indicates the component's capacitance value in picofarads (pF).

Here’s how to decipher 103 capacitor:

• First two digits: These represent the significant figures of the capacitance value.
• Third digit: This is the multiplier, indicating the number of zeros to append to the first two digits.

So, for a 103 capacitor:

• 10 are the significant figures.
• 3 means we add three zeros (10^3).

This translates to 10,000 pF. Converting this to more commonly used units:

• 10,000 pF = 10 nF (nanofarads)
• 10 nF = 0.01 µF (microfarads)

This standardized marking system ensures that regardless of manufacturer, a 103 capacitor consistently refers to a 10 nF component, streamlining design and procurement processes for professionals worldwide. Understanding this simple code is fundamental when sourcing or designing with 103 capacitors.

The Role and Characteristics of 103 Capacitors

Having established its value, let's explore why the 10 nF 103 capacitor is such a cornerstone in electronic design. These capacitors are valued for their specific capacitance, which offers a balance between being large enough for effective filtering and small enough for high-frequency performance and compact designs.

Key Characteristics of 103 Capacitors:

1. Capacitance Value (10 nF):

2. This specific value makes the 103 capacitor incredibly versatile, suitable for a wide array of applications without being overly large or expensive.

3. Common Material Types of 103 Capacitors:

4. While 103 capacitors can be made from various dielectrics, they are most commonly found as ceramic capacitors, particularly Multi-Layer Ceramic Capacitors (MLCCs). Ceramic types are popular due to their small size, low cost, good high-frequency characteristics, and wide operating temperature range. Film capacitors might also come in this value but are less common for general-purpose 10 nF applications.

5. Voltage Ratings:

6. Like all capacitors, 103 capacitors come with various voltage ratings (e.g., 25V, 50V, 100V, 250V). Selecting the correct voltage rating, significantly higher than the maximum expected circuit voltage, is critical for reliability and preventing dielectric breakdown. Our high voltage capacitors, for example, demonstrate the importance of this consideration.

7. Tolerance of 103 capacitors:

8. *103 capacitors have a tolerance, indicating the permissible deviation from the nominal 10 nF value (e.g., ±5%, ±10%, ±20%). This is important for precision circuits.

9. 103 capacitor Temperature Coefficient:

10. Ceramic 103 capacitors, especially those with X7R or Z5U dielectrics, exhibit changes in capacitance with temperature. C0G/NP0 types offer excellent temperature stability, though often at a higher cost. This characteristic is particularly relevant for professionals working with temperature-sensitive thermistors.

Common Applications of 103 Capacitors:

• Decoupling/Bypassing: One of their primary uses, 103 capacitors are placed close to integrated circuits (ICs) to filter out high-frequency noise from power supply lines, providing a stable, local power source for instantaneous current demands. This is crucial for microcontrollers and analog circuits interfacing with thermistors.

• Filtering:

• They are excellent for general signal filtering, such as creating low-pass or high-pass filters to remove unwanted frequencies from a signal path.

• Timing Circuits (RC Networks):

• In conjunction with resistors, 103 capacitors form RC networks for timing, delays, or oscillation, often seen in sensor interface circuits.

• Coupling/DC Blocking:

• They can block DC components of a signal while allowing AC components to pass through, essential for isolating stages in an amplifier or sensor readout circuit.

Why 103 Capacitors are Essential in Thermistor-Related Applications

For professionals specializing in thermistors, the 103 capacitor is not just another component; it's a critical enabler of stable and accurate temperature sensing. Our expertise in NTC thermistors and PTC thermistors gives us unique insight into how 103 capacitors enhance their performance.

1. Noise Filtering for Stable Sensor Readings:

2. Thermistors are sensitive analog devices. In environments laden with electrical noise (common in automotive, industrial, and consumer electronics – all areas where our thermistors are widely used), this noise can interfere with the thermistor's resistance measurement, leading to inaccurate temperature readings. A strategically placed 103 capacitor can effectively filter out high-frequency noise on the thermistor's signal line, ensuring a cleaner, more stable signal for analog-to-digital conversion. This is particularly vital in applications requiring high precision.

3. Decoupling for Thermistor Interface Circuits:

4. When thermistors are part of a larger system, they often connect to operational amplifiers, microcontrollers, or ADCs. These active components require stable power. A 103 capacitor placed near the power pins of these interface ICs provides local charge storage, preventing voltage dips caused by sudden current demands and ensuring the accurate operation of the thermistor readout circuit. Without proper decoupling using reliable 103 capacitors, the precision of your temperature sensor (PTC sensor, NTC sensor, RTD sensor) can be compromised.

5. RC Networks of 103 capacitors for Signal Conditioning and Time Delays:

6. In some thermistor applications, it might be necessary to introduce a slight delay or shape the sensor's output. An RC network, incorporating a 103 capacitor with a suitable resistor, can achieve this. For instance, in a temperature control system, a simple RC filter can smooth out rapid fluctuations in temperature readings before processing, preventing erroneous switching. These same principles apply to our temperature sensors like PT100 temperature sensors and PT1000 temperature sensors.

7. Protection Against EMI/RFI:

8. In harsh electromagnetic environments, 103 capacitors can serve as part of an EMI/RFI suppression network. By shunting high-frequency interference to ground, they protect the sensitive thermistor and its associated circuitry from external noise, which could otherwise corrupt data or even damage components. Our varistors, also designed for protection, often work in conjunction with capacitors in such scenarios.

Selecting the Right 103 Capacitor: Key Considerations for Professionals

Choosing the correct 103 capacitor for your specific application goes beyond just its capacitance value. As specialists in quality electronic components, we emphasize a holistic approach.

1. 103 capacitor Application Requirements:

2. What is the specific function? Is it for high-frequency decoupling, precision timing, or general filtering? This dictates the dielectric type and tolerance. A high-quality ceramic disc capacitor (like our Y capacitors) might be suitable for certain line filtering, while an MLCC 103 capacitor is ideal for board-level decoupling.

3. Dielectric Material of 103 capacitors:

   • C0G/NP0 (Class 1 Ceramic):

   • Offers excellent temperature stability, low loss, and high accuracy, ideal for precision timing or filtering where temperature variations are critical for the 103 capacitor.

   • X7R (Class 2 Ceramic):

   • A good general-purpose choice, offering a balance of temperature stability and capacitance value for the 103 capacitor, suitable for decoupling and bypass applications.

   • Z5U/Y5V (Class 2 Ceramic):

   • Higher capacitance in a smaller package, but with poorer temperature stability and higher voltage coefficient. Generally not recommended for precision applications with a 103 capacitor.

4. Voltage Rating:

5. Always select a 103 capacitor with a voltage rating significantly higher (e.g., 2x) than the maximum expected operating voltage to ensure reliability and prevent dielectric breakdown. This is crucial for all high voltage applications.

6. Tolerance and Stability:

7. For precision thermistor circuits, a tighter tolerance 103 capacitor (e.g., ±5%) and a stable dielectric (C0G) are preferable to maintain accuracy over temperature and time.

8. Size and Form Factor:

9. Available in surface-mount device (SMD) for compact PCBs or through-hole for prototyping and specific assembly needs. The choice of form factor for your 103 capacitor depends on manufacturing processes and space constraints.

10. ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance):

11. For high-frequency applications like power supply decoupling, low ESR and ESL are critical for the 103 capacitor to effectively shunt noise. MLCCs generally offer good high-frequency performance.

12. Operating Temperature Range:

13. Ensure the selected 103 capacitor can reliably operate across the full temperature range of your product, particularly important for systems interacting with temperature sensors.

14.

Integration Best Practices and Common Pitfalls of 103 capacitors

Successfully integrating 103 capacitors into your design requires careful attention to detail:

• Placement is Key:

• For decoupling, place the 103 capacitor as close as possible to the power and ground pins of the IC it's protecting. This minimizes trace inductance and maximizes effectiveness.

• Optimal Layout:

• Use short, wide traces for connections to the 103 capacitor to minimize parasitic inductance and resistance. Ensure a solid ground plane.

• Soldering Techniques:

• Proper soldering ensures a reliable mechanical and electrical connection. Incorrect techniques can damage the 103 capacitor or create unreliable joints.

• Avoid Over-voltage/Current:

• Never exceed the specified voltage or current ratings of the 103 capacitor. This can lead to premature failure or catastrophic damage.

• Environmental Factors:

• While robust, consider the long-term impact of extreme temperatures and humidity on the performance of your 103 capacitors.

DXM – Trusted Manufacturer of the 103 Capacitor and Precision Components

At DXM, the 103 capacitor and other 103 capacitors play a vital role in our product lineup. Founded in 1996, DXM is one of China’s leading ISO 9001:2008-certified electronics manufacturers. With over 29 years of expertise and strong R&D capability, we provide reliable components trusted by global professionals.

Comprehensive Range of High-Quality Electronic Components

We specialize in thermistors (PTC Thermistor, NTC Thermistor), Varistors, High Voltage Capacitors, and Ceramic Disc Capacitors (Y Capacitors). Our catalog also includes Temperature Sensors (PTC sensor, NTC sensor), Thermometer Sensors, RTD Sensors (PT100, PT1000, PT100 SMD, PT1000 SMD), and PTC Heaters (PTC Ceramic Heater, PTC Fan Heater). Each component, including the 103 capacitor, ensures durability, precision, and consistent performance.

Reliable Solutions for Diverse Industry Applications

Our products are widely used in Automotive Electronics, Consumer Electronics, Home Appliances, Power Electronics, Industrial Electronics, and Telecommunication. We understand the technical demands of these sectors. Every DXM component—especially the 103 capacitor—is engineered for maximum reliability, meeting the highest industry standards for quality and stability.

Conclusion – The Power and Precision of the 103 Capacitor

The 103 capacitor is a compact yet essential component in modern electronics. These 103 capacitors provide stable 10 nF capacitance, ensuring reliable performance in thermistor-based applications.

Its precise value supports functions like noise filtering, decoupling, and timing—critical for temperature sensing accuracy. Each 103 capacitor enhances signal stability and extends circuit lifespan.

Enhancing Reliability Through Smart Component Selection

Professionals who understand the structure, markings, and dielectric choices of 103 capacitors can design more robust systems. Selecting the right capacitor improves performance, durability, and consistency in demanding environments.

By integrating high-quality 103 capacitors, engineers can significantly boost precision, reliability, and longevity in thermistor and temperature-control systems.
