How to Find Impedance of a Capacitor: Guide for Professionals

In the intricate world of electronics, understanding component behavior is paramount for robust and reliable system design. Among the most fundamental yet often misunderstood concepts is the impedance of a capacitor, and knowing precisely how to find impedance of a capacitor is a cornerstone for any professional dealing with alternating current (AC) circuits.

As specialists in sensitive electronic components, including a wide array of thermistors and high-voltage capacitors, we at DXM deeply appreciate the nuances of electrical characteristics that impact overall system performance. This comprehensive guide is crafted specifically for our peers in the thermistor and broader electronics industries, aiming to demystify capacitor impedance and provide actionable insights for your projects.

The Essence of Impedance of A Capacitor: Beyond Simple Resistance

When we talk about direct current (DC) circuits, resistance is straightforward: it's a component's opposition to current flow. However, in AC circuits, components like capacitors and inductors behave differently due to their energy storage capabilities. This dynamic opposition to AC current flow is what we define as impedance (Z). Unlike simple resistance, impedance is a complex quantity, possessing both magnitude and phase, and it’s heavily dependent on the frequency of the AC signal. For a capacitor, its impedance is primarily dominated by what we call capacitive reactance (Xc). Understanding this distinction is the first step in truly grasping the impedance of a capacitor.

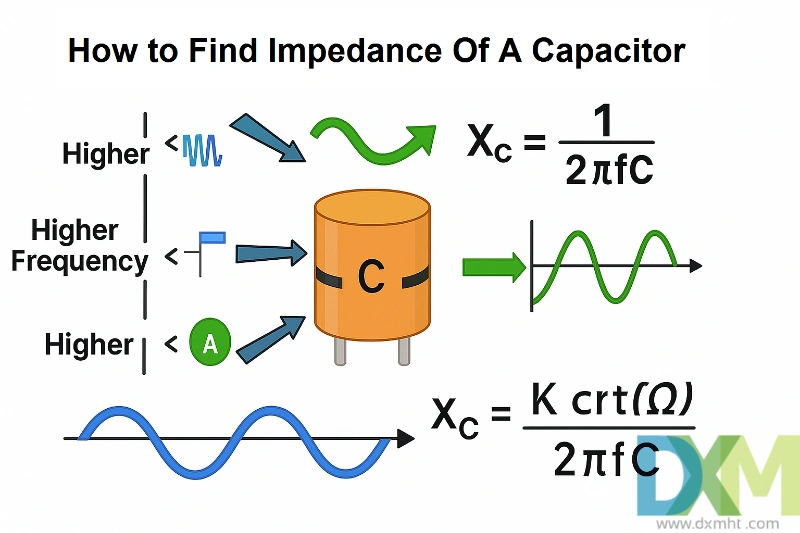

Decoding Capacitive Reactance (Xc): How To Find Impedance Of A Capacitor

Capacitive reactance (Xc) is the opposition that a capacitor presents to changes in voltage across it, which translates to an opposition to AC current flow. It's inversely proportional to both the frequency of the AC signal and the capacitance of the capacitor itself. This inverse relationship is critical:

* Higher Frequency (f): As the frequency of the AC signal increases, a capacitor has less time to charge and discharge, effectively allowing more current to pass through. Thus, its capacitive reactance decreases.

* Higher Capacitance (C): A larger capacitance means the capacitor can store more charge, and it takes longer to charge/discharge for a given voltage change. This also leads to lower opposition to AC current, hence lower capacitive reactance. The fundamental formula to how to find impedance of a capacitor's reactance is: Xc = 1 / (2πfC)

Where:

* Xc is the capacitive reactance, measured in Ohms (Ω).

π (Pi) is approximately 3.14159.

* f is the frequency of the AC signal, measured in Hertz (Hz).

* C is the capacitance of the capacitor, measured in Farads (F).

It's vital to ensure your units are consistent (Farads for capacitance, Hertz for frequency) to get an accurate result in Ohms. This formula is the core of understanding the impedance of a capacitor.

From Reactance to Full Impedance of A Capacitor (Zc): A Deeper Dive

While Xc is the dominant factor, a real-world capacitor is not purely reactive. It also exhibits a small amount of Equivalent Series Resistance (ESR) and Equivalent Series Inductance (ESL). These parasitic elements become particularly significant at higher frequencies or in applications demanding high precision, such as power electronics or sensitive sensor interfaces where we often see our high voltage capacitors and ceramic disc capacitors deployed. The total impedance (Zc) of a real capacitor can be represented as a complex number: Zc = R_esr - jXc + jX_esl Where:

* R_esr is the Equivalent Series Resistance. * j is the imaginary unit (√-1).

* Xc is the capacitive reactance.

* X_esl is the Equivalent Series Inductance (which is often negligible at lower frequencies but can be important at very high frequencies).

For most practical purposes, especially at lower to moderate frequencies,

X_esl is often ignored, and the impedance of a capacitor is primarily considered as:

Zc ≈ R_esr - jXc The magnitude of this impedance is |Zc| = √(R_esr² + Xc²).

Understanding ESR is crucial for thermal management and power loss, especially in applications like power supply decoupling, where our high voltage capacitors are frequently used. A low ESR is often desired to minimize heat generation and improve filtering efficiency. Knowing how to find impedance of a capacitor by considering ESR provides a more accurate picture of its real-world performance.

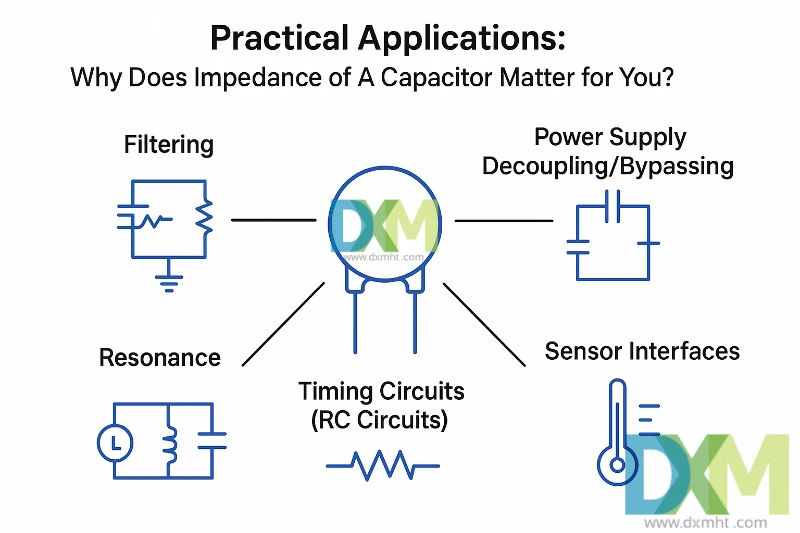

Practical Applications: Why Does Impedance of A Capacitor Matter for You?

For professionals in the thermistor industry, and indeed across all branches of electronics, comprehending the impedance of a capacitor isn't just theoretical knowledge; it's a practical necessity that impacts system reliability, accuracy, and overall performance.

Our decades of experience manufacturing precision components for automotive, consumer, industrial, and telecommunication sectors have underscored this repeatedly. Let's explore key applications where the impedance of a capacitor plays a vital role:

1. Filtering:

Capacitors are fundamental components in filter circuits (e.g., low-pass, high-pass, band-pass). Their frequency-dependent impedance allows them to block or pass specific frequency ranges. For instance, in a low-pass filter, a capacitor shunts high frequencies to ground due to its decreasing impedance at higher frequencies. This is crucial for cleaning up noisy sensor signals, such as those from our NTC thermistors or PT100 temperature sensors, ensuring accurate readings. Understanding the impedance of capacitors here directly dictates filter cut-off frequencies and effectiveness.

2. Timing Circuits (RC Circuits):

In applications requiring precise timing, such as oscillators, delays, or shaping waveforms, the RC time constant (τ = RC) is fundamental. Here, the capacitor's impedance, interacting with the circuit's resistance, dictates the charge and discharge rates. Knowing how to find impedance of a capacitor helps predict these timing behaviors accurately.

3. Power Supply Decoupling/Bypassing:

To suppress noise and provide stable power to integrated circuits, capacitors are placed close to power pins. They act as local energy reservoirs, instantly supplying current surges and shunting high-frequency noise from the power lines to ground. For effective decoupling, a capacitor needs very low impedance of a capacitor at the frequencies it's intended to suppress. This is particularly important in high-speed digital circuits and sensitive analog front-ends connected to components like our varistors or RTD sensors.

4. Resonance:

In resonant circuits (LC circuits), the inductive and capacitive reactances cancel each other out at a specific resonant frequency. This phenomenon is critical in tuned circuits for radios, RF applications, and power converters. Precise control over the impedance of a capacitor and an inductor is essential to achieve the desired resonant frequency.

5. Sensor Interfaces:

When integrating components like our PTC thermistors, NTC thermistors, or even complex temperature sensor modules, capacitors are often used for signal conditioning. Whether it's filtering out ambient noise that could affect a thermistor's resistance reading or integrating a signal over time, the impedance of a capacitor directly influences the circuit's response characteristics and the integrity of the sensor data.

The stability and accuracy of your temperature measurements, for example, can be directly impacted by the chosen capacitor's impedance profile. Our specialized ceramic disc capacitors (Y capacitors) are often designed with specific impedance characteristics for robust performance in such demanding environments.

Calculating and Measuring Impedance of A Capacitor: A Step-by-Step Approach

Now that we understand the significance, let's look at how to find impedance of capacitors practically.

Calculation Example:

Suppose we have a 10µF (microFarad) capacitor and we want to find its capacitive reactance at 60 Hz.

1. Convert Capacitance to Farads: 10µF = 10 x 10^-6 F

2. Identify Frequency: f = 60 Hz

3. Apply the formula:

Xc = 1 / (2πfC)

Xc = 1 / (2 * 3.14159 * 60 Hz * 10 x 10^-6 F)

Xc = 1 / (0.0037699)

Xc ≈ 265.26 Ω

So, at 60 Hz, the capacitive reactance of a 10µF capacitor is approximately 265.26 Ohms.

If we also considered an ESR of 0.1 Ohm, the magnitude of the impedance of a capacitor would be slightly higher.

Measurement Techniques:

While calculation provides theoretical values, actual measurements are crucial for real-world validation, especially when considering parasitic effects.

1. LCR Meters: These dedicated instruments are designed to measure inductance (L), capacitance (C), and resistance (R), often providing ESR and dissipation factor as well. They operate by applying an AC signal of a specific frequency and measuring the resulting current and phase shift to determine the component's impedance. They are excellent for determining the impedance of capacitors across various frequencies.

2. Impedance Analyzers: For highly precise characterization, especially at higher frequencies (MHz to GHz), impedance analyzers offer detailed plots of impedance magnitude and phase angle versus frequency. They are invaluable for understanding how the impedance of a capacitor changes across a wide spectrum, revealing the effects of ESR and ESL.

3. Oscilloscope and Function Generator Method: For a quick, rudimentary measurement, you can create a voltage divider with a known resistor and the capacitor, apply a sine wave from a function generator, and measure the voltage across the capacitor and resistor using an oscilloscope. By comparing the voltage magnitudes and phase shift, you can derive the capacitive reactance and thus the impedance of capacitors.

Remember that environmental factors, such as temperature, can influence capacitance values, and consequently the impedance of a capacitor. This is where our expertise in temperature-sensitive components like thermistors and RTD sensors becomes particularly relevant, as understanding these interdependencies is key to robust designs.

Optimizing Component Selection: Leveraging Impedance of A Capacitor Knowledge

The ability to accurately determine how to find impedance of a capacitor empowers you to make informed decisions during component selection. This is where our 29 years of industry expertise at DXM truly shines. We manufacture a diverse range of sensitive electronic components, from PTC and NTC thermistors to high voltage capacitors and ceramic disc capacitors (Y capacitors), each with meticulously characterized impedance profiles.

When selecting a capacitor, consider:

* Operating Frequency: Match the capacitor's impedance characteristics to your circuit's primary operating frequencies. For high-frequency bypassing, you'll need capacitors with very low impedance at those frequencies, often achieved with smaller capacitance values or specialized constructions like multilayer ceramic capacitors.

* ESR Requirements: For power filtering or high-current applications, low ESR is critical to minimize power loss and heat generation. Our high voltage capacitors are designed with these considerations in mind.

* Voltage Rating: Always ensure the capacitor's voltage rating exceeds your circuit's maximum operating voltage.

* Temperature Stability: For applications in fluctuating temperatures, especially those involving our temperature sensors, consider capacitors with stable capacitance over temperature, as changes in capacitance directly impact the impedance of capacitors.

By understanding how to find impedance of a capacitor and its implications, you can avoid costly design iterations and ensure your electronic components, including those from our extensive portfolio, perform optimally within your systems.

Conclusion

The impedance of a capacitor is far more than a theoretical concept; it's a dynamic property that defines its behavior in AC circuits, influencing everything from filtering effectiveness to timing precision and power supply stability. For professionals in the thermistor and broader electronics industries, mastering how to find impedance of a capacitor is an indispensable skill for designing, troubleshooting, and optimizing advanced electronic systems.

At DXM, with our powerful research and development capabilities and ISO 9001:2008 certification, we are dedicated to manufacturing high-quality, sensitive electronic components—including a comprehensive range of thermistors, varistors, and high voltage capacitors—that meet the exacting demands of modern applications.

Our commitment is to provide components with precisely controlled characteristics, ensuring they integrate seamlessly into your designs. We encourage you to leverage this understanding of impedance of a capacitor in your next project. For high-quality capacitors, thermistors, and other precision electronic components that meet stringent impedance requirements, explore our range at DXM.

Our 29 years of experience ensure components designed for optimal performance. Understanding the impedance of a capacitor and knowing how to find impedance of a capacitor is paramount for robust designs. Partner with us for components where impedance characteristics are meticulously controlled. Contact us today to discuss your specific needs and discover how our expertise can elevate your electronic designs.
