What is a 104 Capacitor Value?

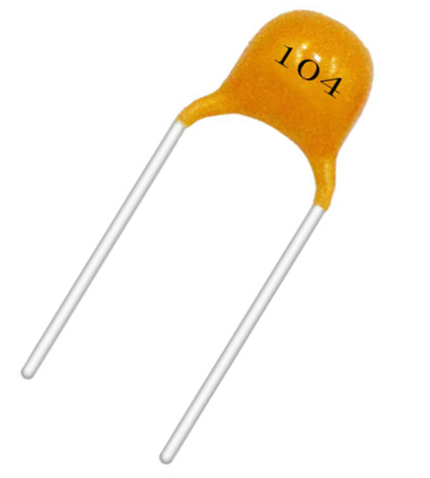

The 104 capacitor value refers to a capacitor with a capacitance of 0.1 µF. This value is derived from the marking on the capacitor. A 104 capacitor consists of the digits "10" followed by a "4." The "10" represents the first two significant digits, while the "4" acts as the multiplier for the power of ten. Therefore, a 104 capacitor value in uf is equal to 10 x 10^4 picofarads (pF), or 100,000 pF, which is equivalent to 0.1 µF.

Knowing the 104 capacitors value ensures that engineers and designers can select the right component for thermistor circuits, noise filtering, decoupling, or other key applications in electronic design. Understanding what value is a 104 capacitor and its role in electronics is crucial for achieving optimal circuit performance.

How Capacitors Are Marked and Decoded

Capacitors come with a variety of markings, and understanding them is essential for professionals. A common marking like "104" denotes a 104 capacitor value, which can be decoded using the formula outlined earlier. However, capacitors come in many different forms and types, and the 104 capacitor is typically found in ceramic multi-layer capacitor (MLCC) form, which is ideal for high-frequency applications. These capacitors are widely available, cost-effective, and durable, making them an excellent choice for thermistor and general electronic applications.

Applications of the 104 Capacitor Value in Thermistor Circuits

The 104 capacitor value is used extensively in thermistor circuits for tasks like noise filtering, decoupling, and timing. Thermistors, which are temperature-sensitive resistors, often require stable electrical conditions to function correctly. Here's how the 104 capacitor value in uf fits into these applications:

• Noise Filtering: The 104 capacitors value is often used in noise filtering applications. When placed across a thermistor's input, it helps to filter out high-frequency noise, ensuring the circuit's performance remains stable. 104 capacitors value can effectively suppress transient spikes in voltage that might otherwise interfere with the thermistor’s readings.
• Decoupling: Another critical use of the 104 capacitors value is for decoupling. In thermistor circuits, decoupling capacitors are placed near the power supply pins of the thermistor to maintain a steady voltage. The 104 capacitors value helps isolate the power supply’s noise from the sensitive thermistor input, resulting in more accurate temperature readings.
• RC Timing: The 104 capacitors value is also ideal for use in RC timing networks. In such circuits, the capacitor works alongside a resistor to set specific timing intervals. The pairing of a 104 capacitor (0.1 µF) with a suitable resistor defines the time constant, which is critical in applications like sampling intervals in temperature monitoring systems.

Choosing the Right 104 Capacitor for Your Circuit

Selecting the right 104 capacitors value requires considering several factors, which ensure that the capacitors perform optimally in thermistor applications. Here are the key considerations:

• Voltage RatingThe voltage rating of the capacitor should exceed the maximum voltage expected in the circuit. For most thermistor applications, a 104 capacitor with a 50V rating is typical, but you should always choose a higher voltage rating if your circuit operates at higher voltages.
• ToleranceThe tolerance of a capacitor affects its accuracy. For high-precision thermistor applications, such as those in industrial temperature sensors, choosing a capacitor with a tight tolerance (e.g., ±5% or better) is crucial to ensure the circuit operates within its desired specifications.
• Temperature CoefficientThe temperature coefficient of a capacitor indicates how its capacitance changes with temperature. Since thermistor circuits are often used to measure temperature, it’s essential to choose a capacitor with a temperature coefficient that matches the operating environment of the thermistor.
• ESR (Equivalent Series Resistance)A low ESR ensures that the capacitor can handle high-frequency signals and fast switching without significant energy losses. For thermistor applications where speed and accuracy are critical, low-ESR 104 capacitors value is ideal.

Advanced Applications and Examples of 104 Capacitor Value

To showcase how the 104 capacitor value integrates into thermistor circuits, consider the following real-world examples:

• Temperature Monitoring SystemsIn a temperature monitoring system, a 104 capacitor (0.1 µF) might be paired with a 10 kΩ resistor to form an RC circuit. The time constant is calculated as follows:

  τ = R × C = 10,000 Ω × 0.0000001 F = 0.001 s

  This results in a time constant of 1 ms, ideal for rapid temperature sampling in systems that need to respond quickly to changes in temperature.

• Decoupling in Precision CircuitsIn high-precision thermistor-based circuits, it is crucial to minimize noise and voltage fluctuations. The 104 capacitors value is ideal for decoupling power supply lines, particularly in systems that demand low ESR and stable performance.
• Signal Processing with a 104 CapacitorThe 104 capacitors value can also be used in signal processing circuits to filter out unwanted frequencies, ensuring that only relevant signals pass through to the thermistor for accurate readings.

Best Practices for Implementing the 104 Capacitor Value

• PCB Layout ConsiderationsKeep capacitor leads as short as possible to reduce inductance. Place the 104 capacitor value as close to the thermistor’s pins as possible, ensuring that the decoupling is effective.
• Component SelectionChoose MLCCs (multi-layer ceramic capacitors) for their low ESR and suitability for high-frequency applications. These capacitors are also highly durable and can withstand high temperatures, making them ideal for thermistor circuits.
• Soldering TipsWhen soldering 104 capacitors, follow manufacturer guidelines to avoid overheating. Inspect solder joints for reliability and ensure the capacitor is securely attached to the PCB for optimal performance.

Ensuring Long-Term Reliability of the 104 Capacitor

The reliability of the 104 capacitor value can be maintained by performing regular tests using a capacitance meter. Testing the 104 capacitor value in uf under load conditions ensures that it remains within the required specifications. Also, proper storage of capacitors in dry, temperature-controlled environments helps maintain their performance over time.
