Mastering Motor Start: Unleashing Efficiency with PTC Motor Starter for 2025 and Beyond

In the intricate world of modern electronics and industrial applications, the humble act of motor start is far more critical than it often appears. From the precise spin of a washing machine to the robust hum of a factory conveyor belt, reliable motor initiation is the silent orchestrator of operational continuity and efficiency. I'm here to guide you through the complexities and cutting-edge solutions in motor start technology, focusing on the transformative power of PTC motor starter.

In an era where every joule of energy and every minute of uptime counts, simply starting a motor is no longer sufficient. We need smart starts – starts that protect equipment, conserve energy, and ensure seamless operation.

The Core Challenge: Why Motor Start Matters

Motors, the workhorses of industry, face significant stress during their initial moments of operation. Understanding these challenges is the first step towards optimizing performance.

The Dynamics of Motor Start up: Inrush Current Explained

When a motor is first energized, it draws a significantly higher current than its normal operating current. This phenomenon, known as 'inrush current' or 'locked-rotor current,' can be 5 to 10 times the motor's rated current. This surge is necessary to establish the magnetic field and overcome the motor's inertia to get it rotating. However, this powerful jolt comes with a cost.

The high inrush current causes several problems: it stresses the motor windings, generates excessive heat, puts strain on the electrical supply system, and can lead to voltage sags that affect other sensitive equipment on the same circuit. Over time, repeated high inrush currents can severely shorten a motor's lifespan and increase maintenance frequency.

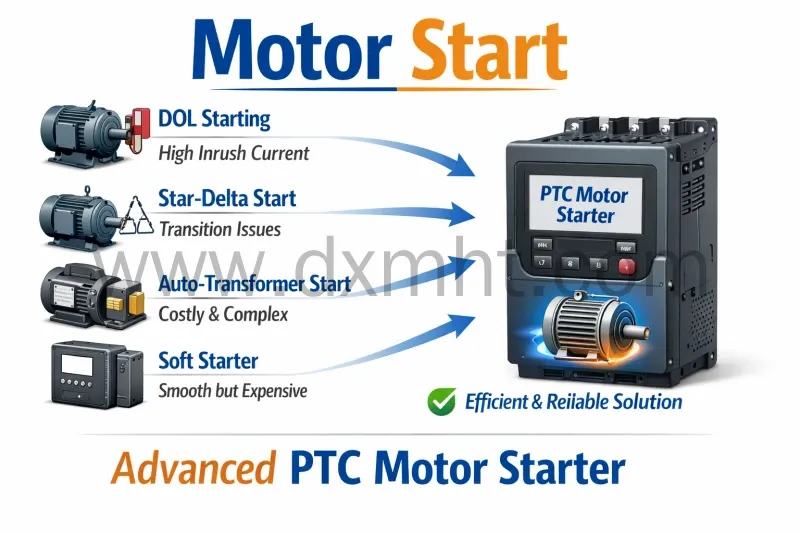

Common Motor Start Methods & Their Limitations

Historically, various methods have been employed to mitigate inrush current:

• Direct-On-Line (DOL) Starting: The simplest and most common, applying full voltage directly to the motor. While cost-effective initially, it subjects the motor and power supply to maximum inrush current, making it unsuitable for larger motors or sensitive systems.
• Star-Delta (Wye-Delta) Starting: Reduces the starting current by connecting the motor windings in a star configuration during startup, then switching to a delta configuration once the motor gains speed. This is better than DOL but still involves mechanical switching and current transients during the transition.
• Auto-Transformer Starting: Uses an auto-transformer to reduce the voltage applied during startup. Effective but adds significant cost, size, and complexity to the system.
• Soft Starters (Electronic): Modern electronic devices that gradually increase the voltage to the motor, providing a smooth start. Highly effective but can be complex, expensive, and introduce harmonics.

While these methods offer various degrees of mitigation, they often come with trade-offs in terms of cost, complexity, efficiency, or motor protection.

The Hidden Costs of Inefficient Motor Start

Beyond the immediate electrical stress, inefficient motor starting incurs substantial hidden costs:

• Premature Motor Wear and Tear: High mechanical and electrical stress during startup leads to faster degradation of windings, bearings, and other components.
• Increased Energy Consumption: Inefficient starts can waste energy, especially in applications with frequent start-stops.
• Reduced Uptime and Productivity: Motor failures due to startup stress lead to unplanned downtime, halting production and impacting profitability.
• Higher Maintenance Costs: More frequent repairs and replacements add to operational expenses.
• Impact on Grid Stability: Large inrush currents can destabilize local power grids, leading to voltage fluctuations for other consumers.

Enter the Game Changer: PTC Motor Starter

The quest for a truly efficient, reliable, and cost-effective motor start solution has led to the widespread adoption of PTC motor starters. These ingenious devices leverage the unique properties of PTC (Positive Temperature Coefficient) thermistors to provide a smooth, controlled startup.

What is a PTC Thermistor and How Does it Work?

A PTC thermistor is a type of resistor whose resistance increases sharply and non-linearly when its temperature exceeds a certain threshold (its Curie point). In a motor starter application, a PTC thermistor is connected in series with the motor's auxiliary winding. At ambient temperature, the PTC has a very low resistance, allowing current to flow freely to the auxiliary winding, providing the necessary starting torque.

As the motor start and the PTC thermistor heats up due to the current passing through it, its resistance rapidly increases. This resistance increase effectively reduces and eventually cuts off the current to the auxiliary winding, leaving the motor to run solely on its main winding. This transition is smooth and automatic, eliminating the abrupt current changes associated with other methods.

The Genius of PTC Motor Starter: A Soft Start Solution

The beauty of the PTC motor starter lies in its simplicity and inherent intelligence. It acts as an automatic switch, providing a 'soft start' without complex electronics or mechanical moving parts. This self-regulating behavior makes it incredibly reliable and virtually maintenance-free.

Advantages Over Traditional Methods

Compared to other starting solutions, PTC motor starter offers compelling advantages:

• Enhanced Motor Longevity: By significantly reducing inrush current, PTC starters minimize stress on motor components, dramatically extending their operational life.
• Superior Energy Efficiency: Smooth starts prevent energy wastage associated with high current surges, leading to long-term operational savings.
• Cost-Effectiveness: Their simple design translates to lower manufacturing costs and eliminates the need for expensive, complex control circuits.
• Compact Size and Easy Integration: PTC thermistors are small and robust, allowing for compact motor start designs that are easy to integrate into various systems.
• Unmatched Reliability: With no moving parts to wear out, PTC starters offer exceptional reliability and require minimal to no maintenance.
• Overload Protection: In some configurations, the PTC can also provide a degree of overload protection, further safeguarding the motor.

•

Unpacking the Benefits: Why DXM's PTC Motor Starters Are Superior

For nearly three decades, DXM has been at the forefront of manufacturing sensitive electronic components, setting industry benchmarks for quality, reliability, and innovation. Our expertise in thermistors, particularly PTC thermistors, makes DXM the ideal partner for your motor start solutions.

Enhanced Motor Lifespan and Reliability

At DXM, we understand that motor reliability is paramount. Our rigorously tested PTC thermistors are engineered for precision, ensuring an optimal, consistent soft start every time. This translates directly into a significantly extended lifespan for your motors, reducing the frequency of costly replacements and downtime.

Significant Energy Savings and Reduced Operating Costs

Our PTC motor starter components are designed to minimize energy consumption during startup. By mitigating wasteful inrush currents, DXM's solutions help you achieve substantial energy savings, directly impacting your bottom line and contributing to a greener operational footprint. This focus on efficiency aligns perfectly with global sustainability goals and the demands of modern industrial efficiency.

Compact Design, Easy Integration, and Maintenance-Free Operation

DXM’s sensitive electronic components, including our PTC thermistors, are crafted for compact size and robust performance. This makes our PTC motor starter solutions easy to integrate into existing or new designs across a myriad of applications, from small consumer appliances to large industrial machinery. The inherent simplicity and solid-state nature of our PTC components ensure virtually maintenance-free operation, translating to lower total cost of ownership.

Versatile Applications Across Industries

The versatility of DXM’s components shines through their wide applicability. Our PTC thermistors are integral to PTC motor start used in dozens of major categories:

• Automotive electronics: Ensuring reliable starts for various vehicle systems.
• Home appliances: From refrigerators to air conditioners, guaranteeing smooth and quiet operation.
• Industrial electronics: Powering critical machinery and automation systems with unwavering reliability.
• Power Electronics: Contributing to the stability and efficiency of power conversion systems.
• Telecommunication: Protecting sensitive equipment and ensuring uninterrupted service.

This broad spectrum of applications underscores our deep understanding of diverse industry needs and our capability to deliver tailored solutions.

The DXM Advantage: Powering Your Progress with Precision Electronics

Choosing DXM means partnering with a company synonymous with excellence and innovation in electronics manufacturing.

29+ Years of Unmatched Expertise and Innovation

Established in 1996, DXM boasts more than 29 years of industry expertise. This extensive experience has allowed us to refine our processes, perfect our designs, and deeply understand the nuanced requirements of sensitive electronic components. Our long history is a testament to our enduring commitment to quality and forward-thinking innovation.

ISO 9001 Certified Quality and Reliability

As an ISO 9001-certified manufacturer, DXM adheres to the highest international standards of quality management. This certification is not just a badge; it's a reflection of our rigorous quality control, consistent manufacturing processes, and unwavering dedication to delivering reliable products that exceed expectations. Every PTC thermistor, every varistor, every capacitor leaving our facility undergoes stringent testing to ensure peak performance.

Comprehensive Range of Sensitive Electronic Components

While our focus here is on PTC motor start, DXM's capabilities extend far beyond. We specialize in supplying a wide array of quality components vital for modern electronics, including:

• Thermistors (PTC Thermistor, NTC Thermistor)
• Varistors
• High voltage capacitors, ceramic disc capacitors (Y capacitors)
• Temperature sensors (PTC sensor, NTC sensor)
• RTD sensors (PT100, PT1000, PT100 SMD, PT1000 SMD)
• PTC heaters (PTC ceramic heater, PTC fan heater)

This extensive product portfolio demonstrates our holistic understanding of electronic systems and our ability to be a single-source provider for numerous critical components.

Powerful R&D: Future-Proofing Your Motor Start Solutions

Our commitment to powerful research and development is what truly sets DXM apart. We don't just manufacture; we innovate. Our R&D capabilities ensure that our PTC thermistors and other components are continuously optimized, meeting the evolving demands of technology and anticipating future industry standards. This forward-thinking approach means that when you choose DXM, you're investing in solutions that are not just current, but future-proof.

Implementing PTC Motor Start: A Strategic Decision

Integrating PTC motor starters into your designs is a strategic move that delivers immediate and long-term benefits.

Identifying the Right PTC Solution for Your Needs

With DXM's vast experience, we can help you specify the ideal PTC thermistor for your unique motor application. Factors such as motor power, operating voltage, environmental conditions, and desired startup characteristics all play a role in selecting the perfect component. Our team of experts is ready to provide guidance and support, ensuring a perfect match for optimal performance.

A Look Ahead: The Future of Motor Start Control Technology

As we move towards 2025 and beyond, the demand for even more efficient, compact, and intelligent motor control solutions will only grow. PTC motor starter, with it's inherent simplicity and effectiveness, is poised to play an increasingly vital role. Its seamless integration with other smart technologies will further enhance overall system performance and energy management.

Conclusion: Powering Your World with DXM's Precision and Expertise

The reliability of your motor's start is not just a technical detail; it's a foundational element of your operational success, energy efficiency, and equipment longevity. PTC motor starter, powered by advanced PTC thermistors, offer an elegant, robust, and cost-effective solution to the pervasive challenges of motor start up.

As one of China's foremost, largest, and ISO 9001-certified modernization electronics manufacturers, DXM stands ready to empower your innovations. With over 29 years of unparalleled industry expertise in sensitive electronic components and powerful research and development capabilities, DXM provides not just products, but solutions. Our comprehensive range of quality thermistors, varistors, capacitors, and sensors ensures that whether you're in automotive, consumer electronics, home appliances, or industrial sectors, you have access to the highest caliber components. Trust DXM to deliver the precision, reliability, and cutting-edge technology your applications demand, making every motor start a testament to efficiency and excellence.
